Strip Tap Terminal for Foil Termination

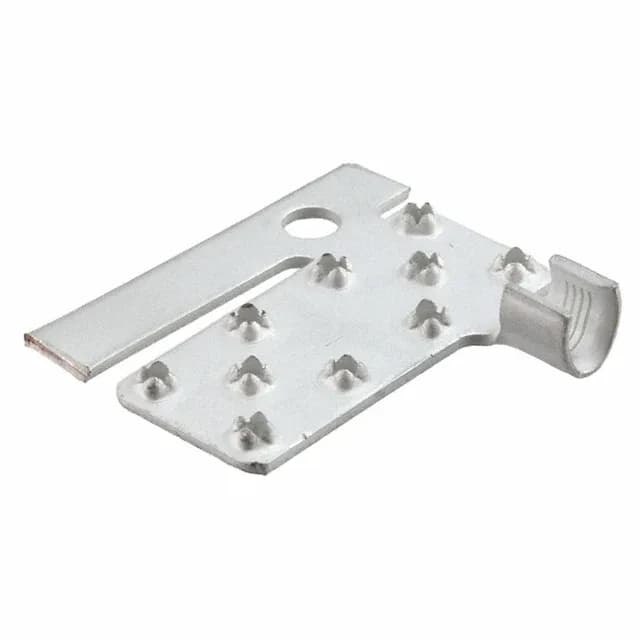

The 276708-2 is a Termi-Foil strip tap terminal from TE Connectivity, designed for terminating foil conductors in power distribution and grounding applications. It accepts 14-16 AWG wire and uses a tin-plated copper contact for reliable electrical connection. The foil crimp area measures 0.408" x 0.454" (10.36mm x 12.80mm), providing a large surface for mechanical and electrical bonding to the foil strip. Overall length is 0.675" (17.15mm).
Rated for 14-16 AWG wire, this terminal suits medium-gauge foil or cable connections common in busbar, battery, and power supply assemblies. The strip tap design crimps directly onto the foil without requiring a separate housing. Tin contact finish is standard for cost-sensitive, low-mating-cycle applications — suitable for one-time crimp connections where corrosion resistance is adequate for indoor or protected environments.
ROHS3 compliant, meeting the latest EU directive for restricted substances.
Sourcing and Package Options
Supplied in Tape & Reel (TR) for automated crimping machines, or Cut Tape (CT) for manual or low-volume assembly. Quoted to order against BOM quantity; availability confirmed at RFQ.
