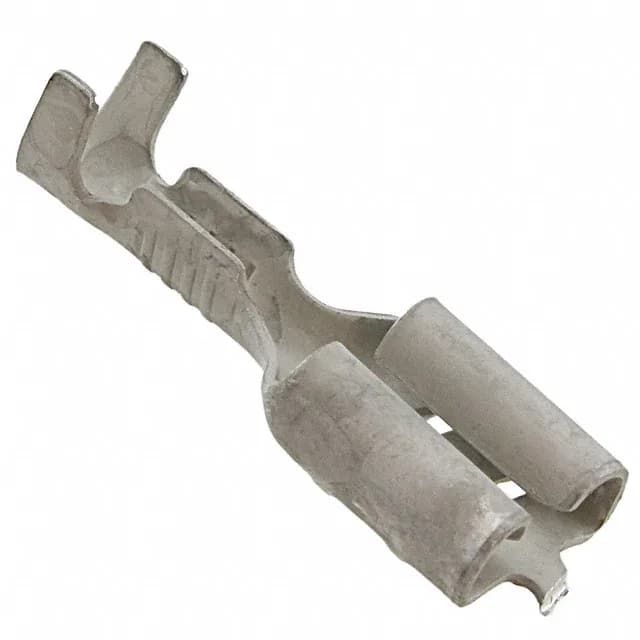

TE Connectivity AMP Faston quick-disconnect receptacle, order code 280000-6, female, 0.250" (6.35mm) tab width, 18-22 AWG, non-insulated, brass, crimp termination, free hanging in-line.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 18-22 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.303\" (7.70mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Length - overall | 0.748\" (19.00mm) |
| Insulation diameter | 0.087\" ~ 0.130\" (2.21mm ~ 3.30mm) |
The 280000-6 accepts 18-22 AWG wire; the 280001-9 sibling handles 13.5-17 AWG with a wider insulation diameter range (0.118" to 0.169"), while the 280050-2 covers 15.5-20 AWG and adds a right-angle mounting option. All three share the same 0.250" tab width, 0.032" tab thickness, brass contact material, and non-insulated crimp design — the selection decision is driven by wire gauge range and insulation diameter.
The 280000-6 is ROHS3 compliant per the manufacturer's listing.
Both terminals share the same 0.250" tab width and 0.032" tab thickness, so they mate with the same male tab. The 280001-9 accepts 13.5-17 AWG wire, while the 280000-6 accepts 18-22 AWG — verify the wire gauge before substituting.
