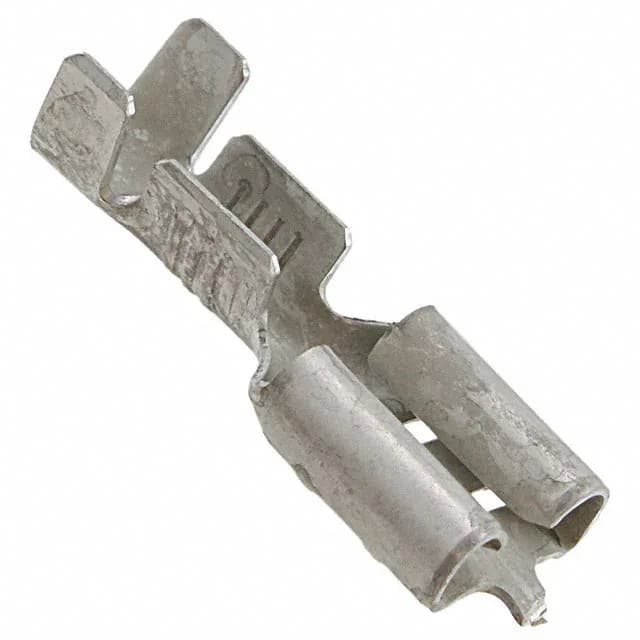

TE Connectivity AMP Faston quick-disconnect terminal, order code 280001-9, female, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 13.5-17 AWG, tin-plated brass, crimp termination, free hanging, tape & reel.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 13.5-17 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.303\" (7.70mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 0.748\" (19.00mm) |
| Insulation diameter | 0.118\" ~ 0.169\" (3.00mm ~ 4.29mm) |
The 280001-9 is a female Faston quick-disconnect terminal accepting 13.5-17 AWG wire, with a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness — the standard size for 6.35mm blade connectors. Tin-plated brass contact material suits moderate-cycle applications where corrosion resistance at the crimp joint is the priority over mating cycle count.
ROHS3 compliance is confirmed. No UL, CSA, or IEC certification is listed on the record.
