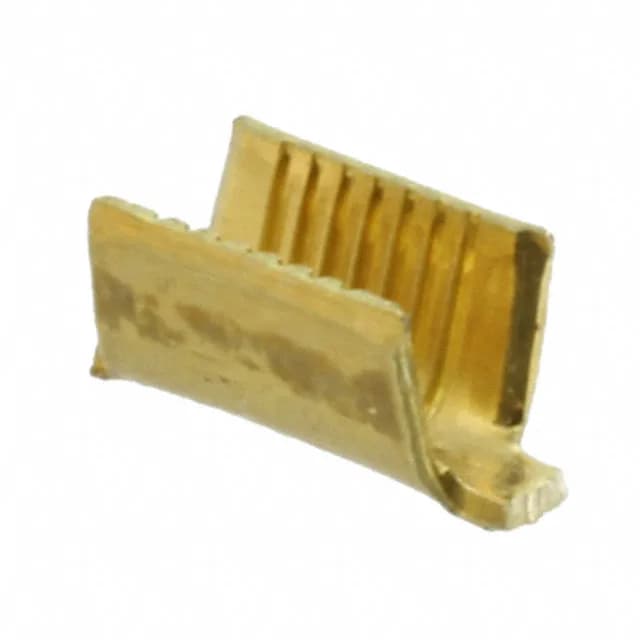

TE Connectivity AMP Connectors Amplivar crimpband splice, order code 280004-1, 600-3000 CMA wire range, non-insulated, serrated mating area, open band terminal type, crimp termination.
| Parameter | Value |
|---|---|
| Series | Amplivar |
| Terminal type | Crimpband, Open Band |
| Wire gauge | 600-3000 CMA |
| Number of wire entries | Varies by Wire Size |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Mating Area |
| Insulation | Non-Insulated |
| Termination | Crimp |
The 280004-1 is the non-insulated crimpband splice in TE's Amplivar series, accepting wire from 600 to 3000 CMA. The serrated mating area grips the conductor bundle during the crimp cycle, reducing the pull-out risk that a smooth-band splice leaves to friction alone.
Available in Tape & Reel (TR) or Cut Tape (CT) packaging — the reel format feeds directly into pneumatic or benchtop crimp presses without manual band loading.
ROHS3 compliance is confirmed.
The splice accepts wire from 600 to 3000 CMA, covering a range from roughly 22 AWG to 12 AWG depending on strand count.
