Flag-style QC for tight wire routing

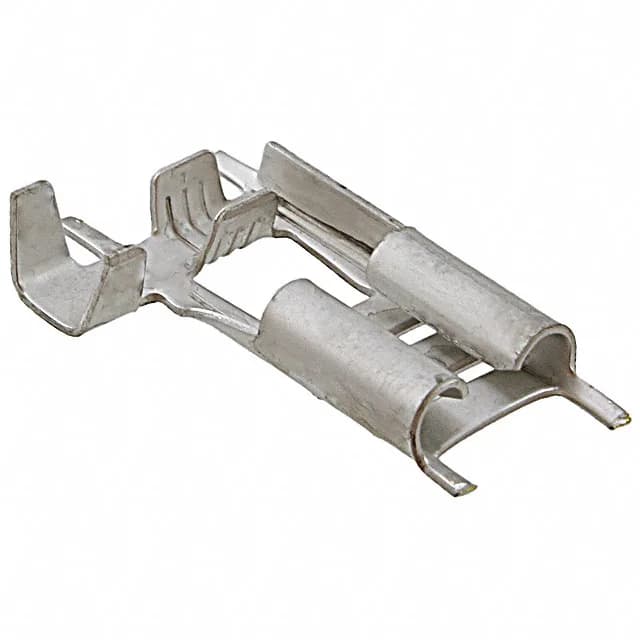

The 280050-2 is a non-insulated female quick-disconnect receptacle in TE's Faston series, configured as a 90° flag terminal for right-angle wire exit. It accepts 15.5-20 AWG wire with an insulation diameter of 0.091" to 0.130" (2.31mm to 3.30mm) and is rated for crimp termination to a 0.250" (6.35mm) tab.
Tab width match across the series
The 280050-2 uses the same 0.250" tab width as the Utilux 1-1627194-4, but the Utilux part accepts 15-18 AWG wire and ships in box packaging rather than tape and reel. The Utilux 1-1659250-0 is also a 0.248" (6.30mm) tab-width female flag terminal for 17-20 AWG — the 0.002" width difference is within tab tolerance, but the wire range and packaging differ.
