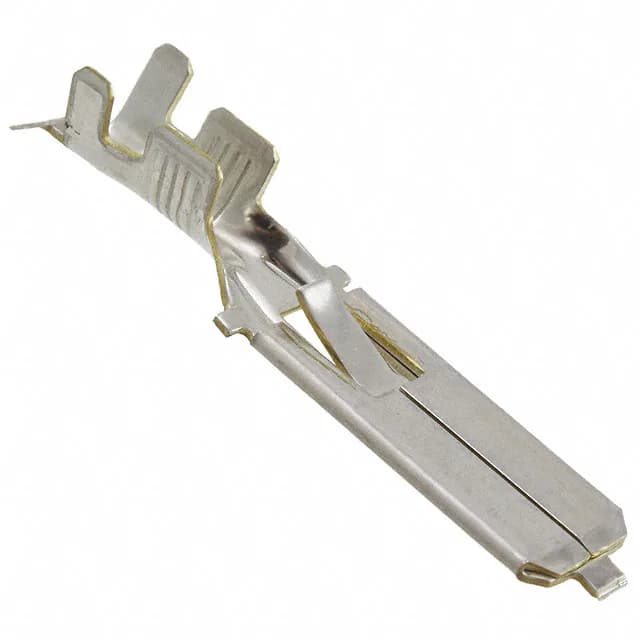

TE Connectivity AMP Fastin-Faston male tab, order code 280075-2, 0.375" (9.53mm) tab width, 10-12 AWG, tin-plated brass, non-insulated, crimp termination, free hanging (in-line).
| Parameter | Value |
|---|---|
| Series | Fastin-Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 10-12 AWG |
| Tab width | 0.375\" (9.53mm) |
| Contact material | Brass |
| Gender | Male |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.843\" (21.40mm) |
| Termination | Crimp |
| Tab thickness | 0.048\" (1.22mm) |
| Contact finish | Tin |
| Length - overall | 1.472\" (37.40mm) |
| Insulation diameter | 0.134\" ~ 0.201\" (3.40mm ~ 5.10mm) |
The 280075-2 is a male Fastin-Faston quick-disconnect tab accepting 10-12 AWG wire, with a 0.375" (9.53mm) tab width and 0.048" (1.22mm) tab thickness. The tin-plated brass contact is terminated by crimp and mounts free hanging; the non-insulated design suits applications where the terminal is housed within a mating receptacle or covered by sleeving.
The 280075-2 is ROHS3 compliant per the manufacturer listing.
