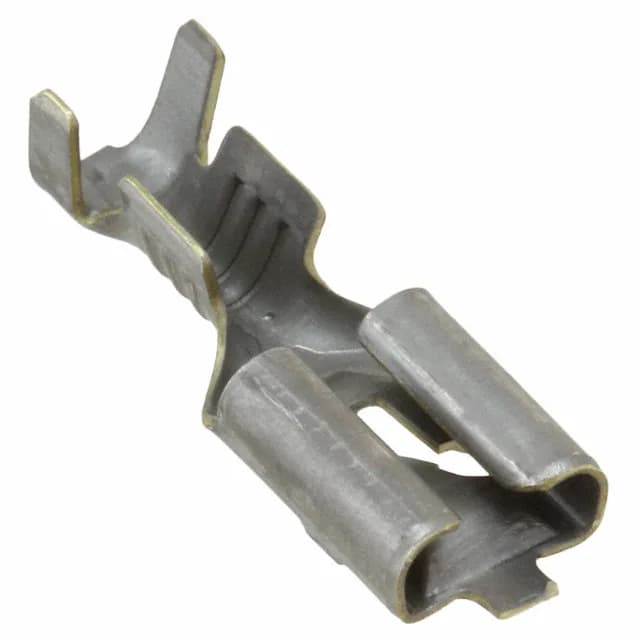

TE Connectivity AMP Connectors 282180-3
MPN282180-3
Active
CONN QC RCPT 15-20AWG 0.187
$0.2100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFastin-Faston
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Fastin-Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 15-20 AWG |
| Tab width | 0.187\" (4.75mm) |
| Contact material | Phosphor Bronze |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.250\" (6.35mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 0.591\" (15.00mm) |
| Insulation diameter | 0.059\" ~ 0.094\" (1.50mm ~ 2.39mm) |
