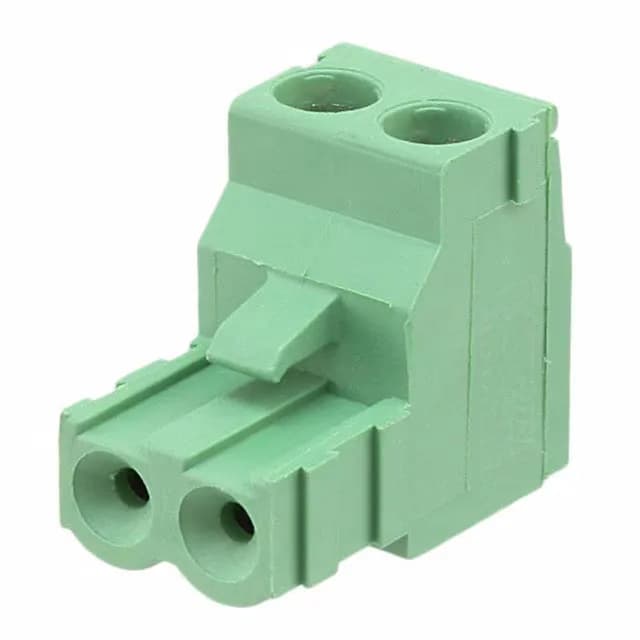

TE Connectivity AMP Connectors Buchanan 282805-2, 2-position plug, female sockets, 0.197" (5.00 mm) pitch, 15 A, 300 V, screw rising cage clamp, free hanging, green, UL94 V-0.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Buchanan |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Plug wire entry | 180° |
| Wire strip length | 6-7.5mm |
| Wire gauge or range - AWG | 12-30 AWG |
| Wire gauge or range - mm2 | 0.05-3mm² |
| Operating temperature | -40°C~110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.610\" (15.49mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Interlocking (Side), Retention Latches (Non-Wire Side) |
| Screw size | M3 |
| Torque - screw | 0.79 Nm (7.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 2 |
| Positions per level | 2 |
| Contact mating finish | Tin |
The 282805-2 is a 2-position plug with female sockets from the TE Buchanan series, designed for free-hanging (in-line) termination at a 180° wire entry angle.
Side interlocking features allow ganging multiple plugs side-by-side for multi-circuit assemblies; retention latches (non-wire side) secure the plug to the mating header.
Yes, it is ROHS3 Compliant.
Peer alternatives in the Buchanan series include 1-2213934-1, 1-2305909-1, and 1-2213935-1. Confirm pitch, position count, and termination style match your application before substituting.
