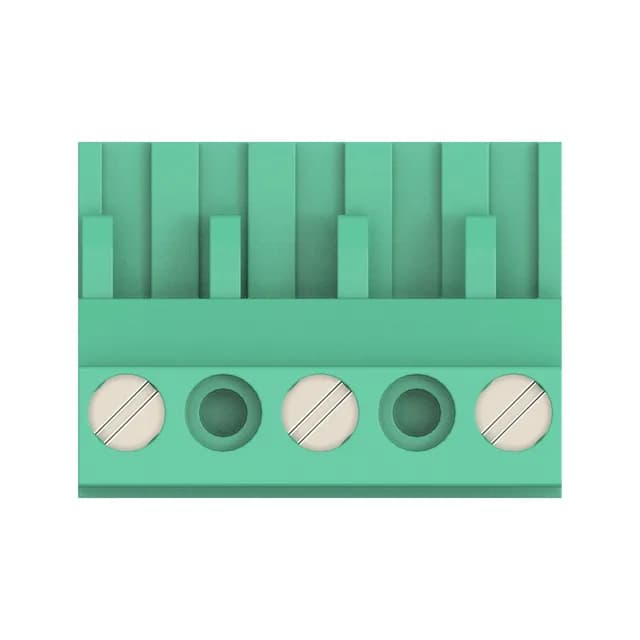

TE Connectivity AMP Connectors Buchanan series, 282808-3, 3-position plug, female sockets, 10.00 mm pitch, screw rising cage clamp, 15 A at 600 V, green housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Buchanan |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 600 V |
| Current - UL | 15 A |
| Plug wire entry | 180° |
| Wire strip length | 6-7.5mm |
| Wire gauge or range - AWG | 12-30 AWG |
| Wire gauge or range - mm2 | 0.03-2.5mm² |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.610\" (15.49mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.394\" (10.00mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side) |
| Screw size | M3 |
| Torque - screw | 0.79 Nm (7.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 3 |
| Positions per level | 3 |
| Contact mating finish | Tin |
The 282808-3 is a 3-position plug from the TE Buchanan series, with a 10.00 mm pitch and screw rising cage clamp termination. It's rated 15 A at 600 V — the kind of rating you expect for panel wiring and industrial control cabinets where you're landing 12-30 AWG wire.
Wire strip length is 6-7.5 mm, and the torque spec for the M3 screw is 0.79 Nm (7.0 Lb-In). The rising cage clamp pulls the wire against the current bar — you should hear the clamp seat before you torque down.
Yes, the 10.00 mm pitch matches standard Buchanan 10 mm headers. Confirm the mating header's position count and orientation.
