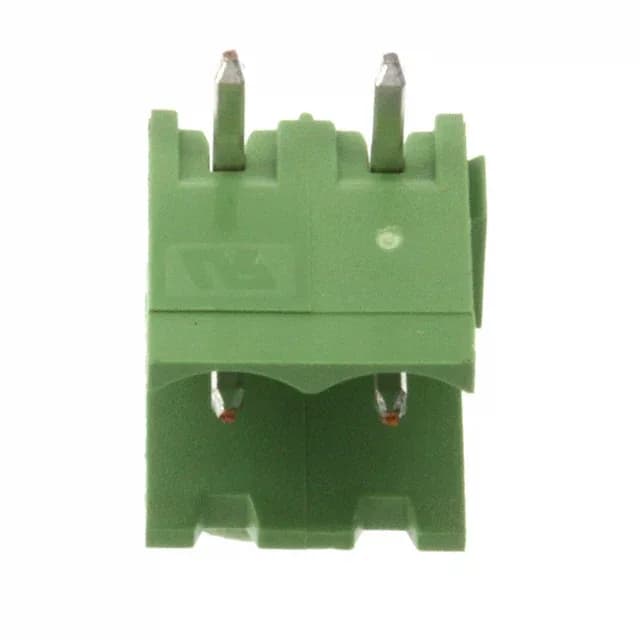

Right-angle 2-position header for terminal block power distribution
Rated 15 A per position at 300 V (UL), this header handles moderate power loads typical of industrial I/O, motor control, and panel wiring. The tin-plated contacts suit applications with infrequent mating cycles — expect reliable performance in a fixed installation. The side interlocking feature lets you gang multiple headers side-by-side to create wider assemblies without extra brackets — useful when a single 2-position header doesn't cover all the circuits in a row.
Pitch, current, and orientation drive the board fit
At 5.00 mm pitch, the 2-position header occupies a 10 mm board footprint — wide enough for easy routing of 14–18 AWG wire but compact for a 2-circuit power tap. The 0.138" (3.50 mm) contact tail length fits standard 1.6 mm thick boards with enough protrusion for a reliable solder fillet. The green housing colour is a visual cue common in terminal block headers — helps identify the power or signal group during panel wiring.
