TE Connectivity AMP Connectors 282815-2 — Header Plugs & Sockets

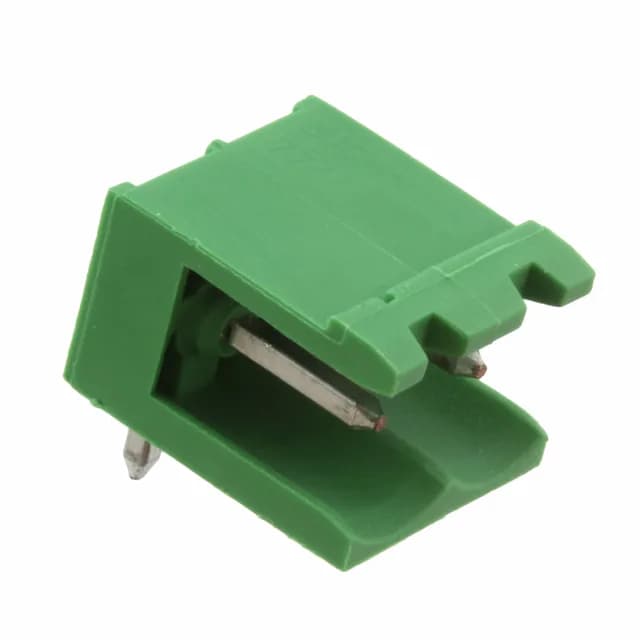

282815-2 TE Connectivity Buchanan Header, 2 Pos, 5.08mm

MPN282815-2
Active

TE Connectivity AMP Connectors Buchanan series, Header Male Pins Shrouded (2 Side), 2 positions, 0.200" (5.08mm) pitch, 15 A, 300 V, right-angle through-hole solder termination, green PA66 housing, UL94 V-0.

$1.2000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

282815-2 key specifications
ParameterValue
TypeHeader, Male Pins, Shrouded (2 Side)
SeriesBuchanan
MountingThrough Hole
Voltage - UL300 V
Current - UL15 A
Operating temperature-40°C~110°C
ColorGreen
Contact materialCopper Alloy
Housing materialPolyamide (PA66), Nylon 6/6
Insulation height0.329\" (8.36mm)
Material flammability ratingUL94 V-0
Pitch0.200\" (5.08mm)

All specifications

282815-2 additional specifications
ParameterValue
PackageBulk
FeaturesSide Stacking
Number of levels1
Termination styleSolder
Header orientation90°, Right Angle
Contact tail length0.138\" (3.50mm)
Positions2
Positions per level2
Contact mating finishTin

Product details

Board Fit and Power Handling

The 282815-2: The shrouded header (2-side shroud) guides the mating plug and protects the pins from accidental shorting during handling.

Contact mating finish is tin — adequate for the moderate mating-cycle duty of a fixed terminal block interface. The side-stacking feature allows multiple headers to be ganged side-by-side on the same pitch for a multi-circuit bus.

Peer Cross-Reference

The closest functional peer is 1-2213934-1, also a 2-position Buchanan header in bulk packaging. Both are active. The difference is in the contact tail length or optional features — confirm the board thickness and solder-tail clearance against the product drawing before substituting.

Frequently asked questions

What is the pitch of 282815-2?

The pitch is 0.200" (5.08mm). This is the centre-to-centre spacing between adjacent pins, which must match the mating terminal block plug.

What is an equivalent to 282815-2?

The closest peer MPN is 1-2213934-1, also a 2-position Buchanan header in bulk. Both are active, but verify the contact tail length and any optional features against your board stack-up before substituting.
