TE Connectivity AMP Connectors Buchanan series, 282822-2, 2-position 5.00mm pitch vertical shrouded header, through-hole solder termination, 15 A / 300 V, UL94 V-0, RoHS3, Active.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (2 Side) |
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.472\" (12.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 2 |
| Positions per level | 2 |
| Contact mating finish | Tin |

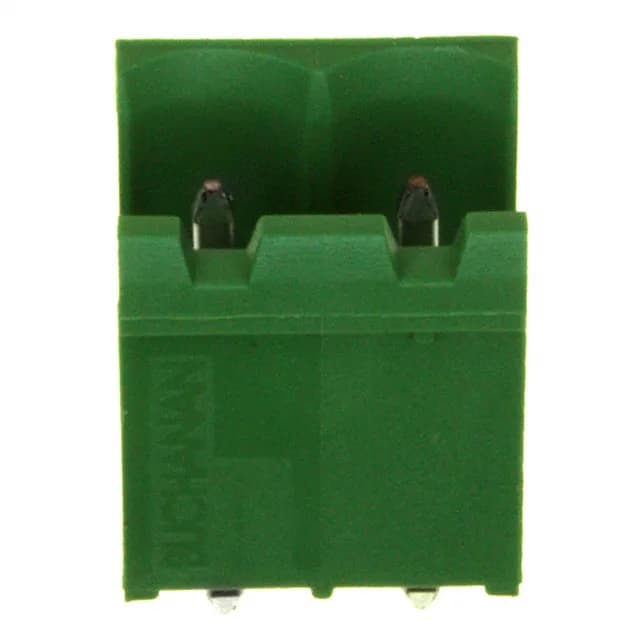

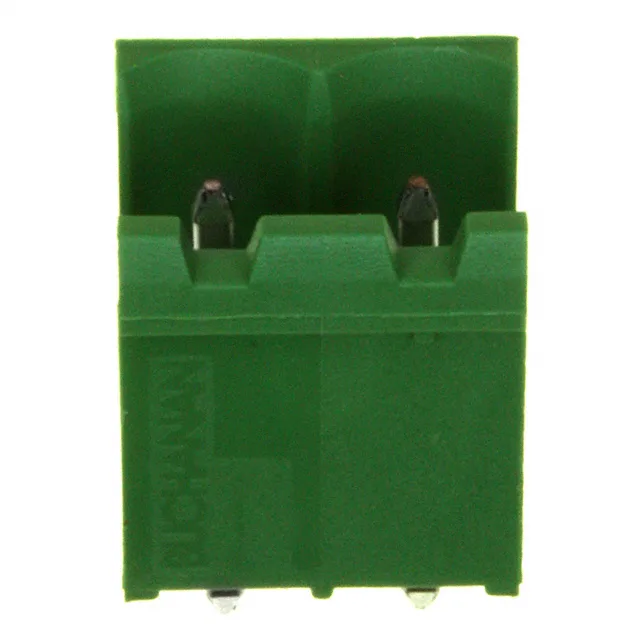

The 282822-2 is a 2-position, 5.00mm pitch vertical header from the TE Buchanan series. It's a shrouded male pin header with a green polyamide housing rated UL94 V-0. Rated 15 A per UL and 300 V, with a tin-plated copper alloy contact surface.
Yes, it is ROHS3 compliant per the lifecycle record.
Rated 15 A per UL at the stated voltage of 300 V.
Through-hole with solder termination, vertical orientation.
0.197" (5.00mm) pitch.
The peer 1-2213934-1 is from the same Buchanan series and active lifecycle, but with a different position count. Confirm your BOM position count before substituting.
