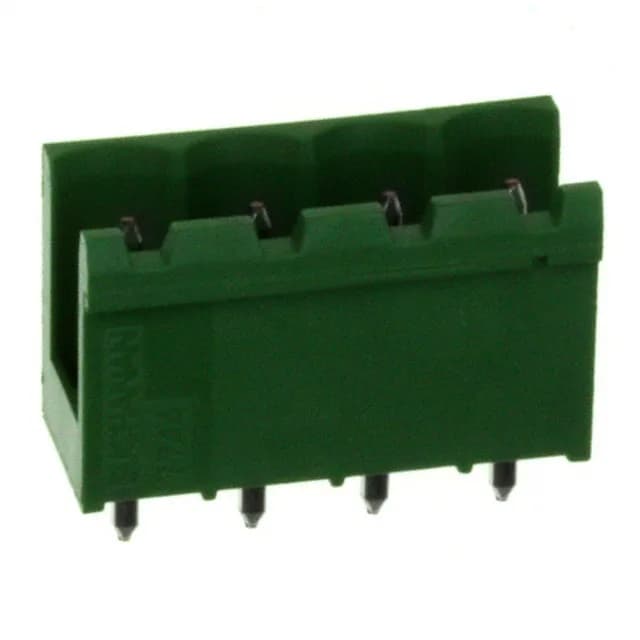

TE Connectivity AMP Connectors Buchanan series, 282822-4, Header, Male Pins, Shrouded (2 Side), 4 positions, 0.197" (5.00mm) pitch, Through Hole, Solder termination, 15 A, 300 V, Tin contact finish, Green housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (2 Side) |
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.472\" (12.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 4 |
| Positions per level | 4 |
| Contact mating finish | Tin |
The 282822-4: The 5.00 mm pitch and 4 positions define the PCB footprint: a single-level through-hole header with a 0.138" (3.50 mm) contact tail length, vertical orientation, and a shrouded (2 side) keying profile that prevents mis-mating with the terminal block receptacle.
Solder termination to the PCB — the through-hole tail length of 0.138" (3.50 mm) suits standard board thicknesses up to 1.6 mm.
The pitch is 0.197" (5.00 mm) and the UL current rating is 15 A per position at 300 V.
