TE Connectivity AMP Connectors 282825-2 — Header Plugs & Sockets

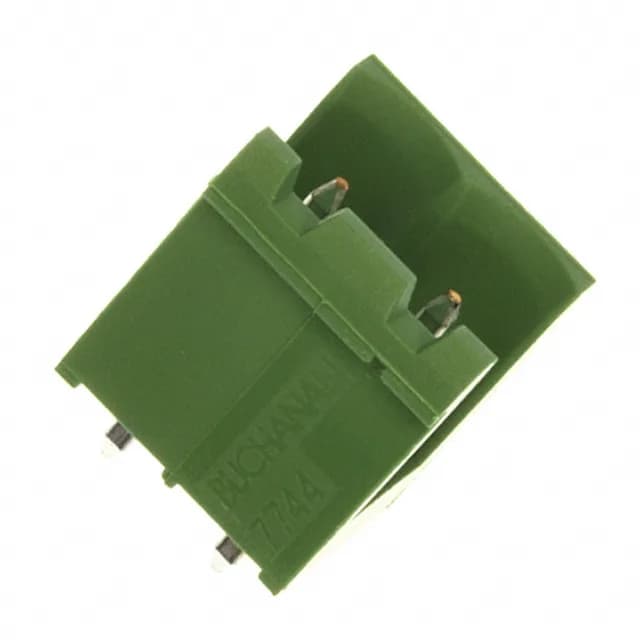

282825-2 TE Connectivity Buchanan Header, 2 Pos, 5.08 mm

MPN282825-2
Active

TE Connectivity AMP Connectors Buchanan series, 282825-2, Header, Male Pins, Shrouded (2 Side), 2 positions, 0.200" (5.08 mm) pitch, vertical through-hole, 15 A, 300 V, UL94 V-0, tin mating finish, -40°C to 110°C.

$0.6000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

282825-2 key specifications
ParameterValue
TypeHeader, Male Pins, Shrouded (2 Side)
SeriesBuchanan
MountingThrough Hole
Voltage - UL300 V
Current - UL15 A
Operating temperature-40°C ~ 110°C
ColorGreen
Contact materialCopper Alloy
Housing materialPolyamide (PA66), Nylon 6/6
Insulation height0.472\" (12.00mm)
Material flammability ratingUL94 V-0
Pitch0.200\" (5.08mm)

All specifications

282825-2 additional specifications
ParameterValue
PackageBulk
FeaturesSide Stacking
Number of levels1
Termination styleSolder
Header orientationVertical
Contact tail length0.138\" (3.50mm)
Positions2
Positions per level2
Contact mating finishTin

Product details

Two-position terminal block header for panel wiring

The 282825-2 is a 2-position, single-level header from the TE Buchanan series, designed for vertical through-hole mounting on a PCB. The shrouded (2 side) design provides basic keying to prevent mis-mating.

Rated 15 A per contact at 300 V (UL), the 282825-2 can handle moderate power loads in industrial control cabinets. That range covers most indoor and outdoor telecom enclosures, but the derating curve above 110°C is not specified here — keep the ambient below the ceiling.

Frequently asked questions

What is the pinout of 282825-2?

The 282825-2 is a 2-position, single-level header with vertical orientation. Each position corresponds to one circuit on the PCB; the pinout follows the standard Buchanan terminal block layout — consult the product drawing for exact pad spacing.

Is 282825-2 RoHS compliant?

Yes, the 282825-2 is listed as ROHS3 Compliant.
