Rated 12 A at 300 V (UL), it handles typical control cabinet and industrial panel power distribution.

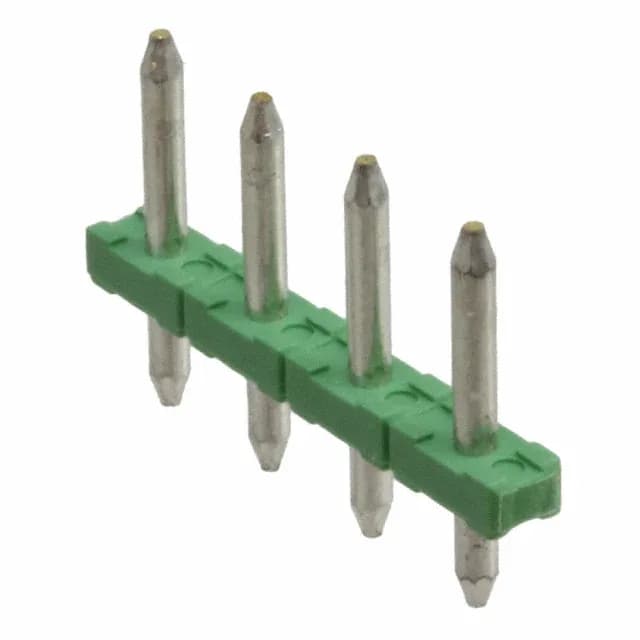

At 5.00 mm pitch, the header occupies 20 mm of board edge for the four pins. The vertical orientation and 0.138" (3.50 mm) contact tail length suit standard 1.6 mm PCBs — the tails protrude enough for a clean solder fillet without bottoming out on the board. Insulation height is 0.079" (2.00 mm), leaving clearance for the plug housing above the header. Mates with any Buchanan 5.00 mm pitch plug that accepts a 4-position header — typically a screw-clamp or spring-clamp plug with the same pin spacing. The green PA66 housing colour is a visual match for the standard Buchanan plug bodies.
