TE Connectivity 282836-7 Buchanan Terminal Block, 7 Position

MPN 282836-7
Active

TE Connectivity Buchanan 282836-7 terminal block, 7 positions, 5.00mm pitch, 13.5 A, 300 V, screw rising cage clamp, through-hole, green housing.

$2.7600 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

282836-7 key specifications
ParameterValue
SeriesBuchanan
MountingThrough Hole
Voltage300 V
Current13.5 A
Wire gauge16-30 AWG
Wire terminationScrew - Rising Cage Clamp
ColorGreen
Housing materialPolyamide (PA66), Nylon 6/6
Clamp material - platingBrass - Nickel Plated
Screw material - platingBrass - Nickel Plated
Contact material - platingBrass - Tin Plated
Pitch0.197\" (5.00mm)

All specifications

282836-7 additional specifications
ParameterValue
PackageBulk
FeaturesInterlocking (Side)
Screw threadM3
Torque - screw0.68 Nm (6 Lb-In)
Number of levels1
Mating orientationHorizontal with Board
Positions per level7

Product details

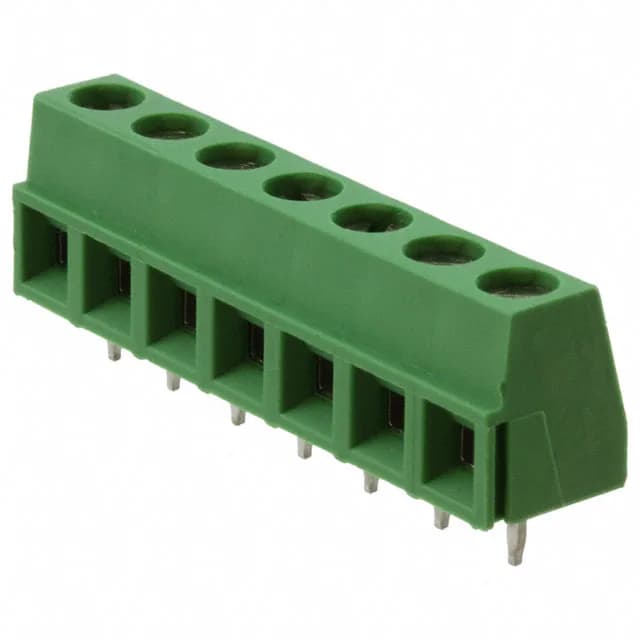

Buchanan 282836-7 — 7-Position PCB Terminal Block, 5.00 mm Pitch

The TE Connectivity Buchanan 282836-7 is a 7-position, single-level PCB terminal block from the Buchanan series, terminated via a screw-actuated rising cage clamp. It is designed for wire-to-board power and signal connections where a field-serviceable, high-retention termination is required — typical for industrial control panels, HVAC equipment, and power distribution PCBs. Each position is rated 13.5 A at 300 V, with the rising cage clamp accepting wire from 16 AWG down to 30 AWG. The clamp and screw are brass with nickel plating; the contact surface is brass with tin plating, suited for the current density and environmental exposure of a typical indoor equipment enclosure. The M3 screw has a specified torque of 0.68 Nm (6 Lb-In) — exceeding this risks stripping the clamp or damaging the conductor. The interlocking side feature allows multiple blocks to be ganged side-by-side without losing position pitch, useful for building multi-level or wider terminal arrays on a single PCB.

Termination and Wire Preparation

The rising cage clamp termination lifts a clamping plate as the screw is tightened, trapping the stripped wire between the plate and the bus bar. This design provides a gas-tight connection that resists vibration loosening better than a simple screw-and-washer terminal. No ferrule is required for stranded wire, though a ferrule eases insertion for fine-strand conductors in the 16-30 AWG range. The 5.00 mm pitch leaves enough board space for routing traces between adjacent terminals at the rated current without excessive copper width.
