TE Connectivity AMP Connectors 282837-2

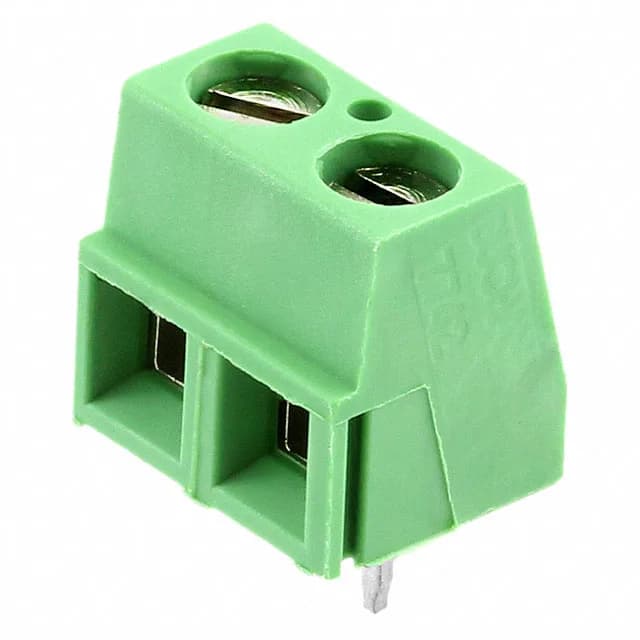

TE Buchanan 282837-2 Terminal Block, 2 Position, 5.08mm

MPN 282837-2
Active

TE Connectivity Buchanan 282837-2, 2-position terminal block, 5.08mm pitch, 13.5 A, 300 V, through-hole, screw rising cage clamp, green housing, RoHS3 compliant.

$0.7000 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

282837-2 key specifications
ParameterValue
SeriesBuchanan
MountingThrough Hole
Voltage300 V
Current13.5 A
Wire gauge16-28 AWG
Wire terminationScrew - Rising Cage Clamp
ColorGreen
Housing materialPolyamide (PA66), Nylon 6/6
Clamp material - platingBrass - Nickel Plated
Screw material - platingBrass - Nickel Plated
Contact material - platingBrass - Tin Plated
Pitch0.200\" (5.08mm)

All specifications

282837-2 additional specifications
ParameterValue
PackageBulk
FeaturesInterlocking (Side)
Screw threadM3
Torque - screw0.68 Nm (6 Lb-In)
Number of levels1
Mating orientationHorizontal with Board
Positions per level2

Product details

PCB Terminal Block for Power-Level Wiring

The TE Connectivity Buchanan 282837-2 is a 2-position PCB-mount terminal block from the Buchanan series, designed for power-level wire termination on a board. The green housing follows the convention for ground/earth terminal blocks in many panel layouts, though the buyer should confirm their own color code. Side interlocking lets multiple 2-position blocks snap together into a longer strip, saving a separate jumper order when the board needs more than two circuits.

Wiring and Termination — Torque Matters

Wire termination is a screw-rising cage clamp — the screw lifts a clamp plate that traps the stripped wire against the current bar. The specified torque is 0.68 Nm (6 Lb-In), which is tight enough for a gas-tight connection on 16 AWG but not so high that it strips the M3 brass screw. The clamp plate is brass with nickel plating, and the contact bar is brass with tin plating — tin is adequate for the moderate mating cycle of a terminal block that gets wired once and left. Wire range 16-28 AWG covers both the heavy power feed and the smaller signal return.

Board Mounting and Orientation

Mounting is through-hole, with the wire entry oriented horizontally with the board — wires enter parallel to the PCB surface, not straight down. This orientation suits boards mounted in enclosures where the wire bundle comes in from the side and the board sits flat. The single-level design keeps the block low-profile; the side interlocking feature allows stacking additional 2-position blocks end-to-end without extra hardware, useful when the BOM calls for multiple isolated circuits on the same pitch.

The base product number is 282837, so a search for that base will surface other position counts in the same family if the BOM needs a different circuit count.
