TE Connectivity AMP Connectors 282838-5

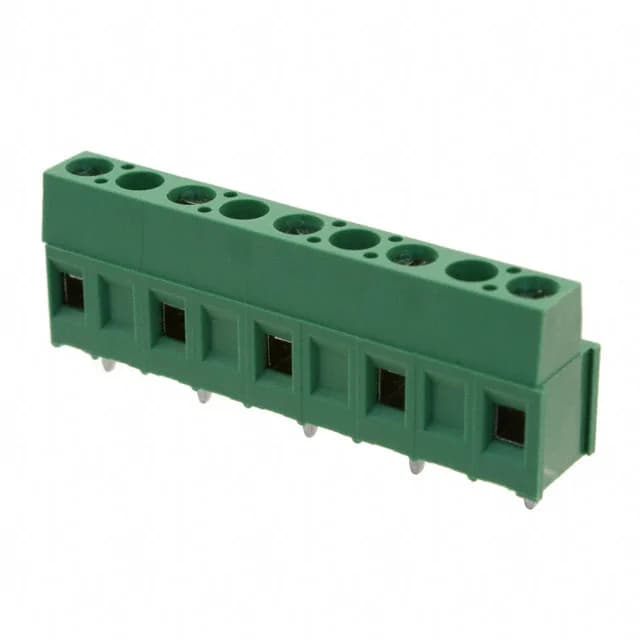

TE Connectivity 282838-5 Buchanan Terminal Block, 5 Position

MPN 282838-5
Active

TE Connectivity Buchanan 282838-5, 5-position terminal block, 10.00 mm pitch, 13.5 A, 600 V, green, side entry, rising cage clamp, through hole, M3 screw.

$1.9300 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

282838-5 key specifications
ParameterValue
SeriesBuchanan
MountingThrough Hole
Voltage600 V
Current13.5 A
Wire gauge16-30 AWG
Wire terminationScrew - Rising Cage Clamp
ColorGreen
Housing materialPolyamide (PA66), Nylon 6/6
Clamp material - platingBrass - Nickel Plated
Screw material - platingBrass - Nickel Plated
Contact material - platingBrass - Tin Plated
Pitch0.394\" (10.00mm)

All specifications

282838-5 additional specifications
ParameterValue
PackageBulk
FeaturesInterlocking (Side)
Screw threadM3
Torque - screw0.68 Nm (6 Lb-In)
Number of levels1
Mating orientationHorizontal with Board
Positions per level5

Product details

The 282838-5: It accepts 16-30 AWG wire terminated via a rising cage clamp — the screw tightens a brass cage that pulls the wire against the current bar, giving a gas-tight connection without damaging the conductor. The side-entry orientation (horizontal with board) keeps the wire path parallel to the PCB, which matters when the enclosure height is tight. Green housing, polyamide 6/6, rated 13.5 A at 600 V.

At 600 V, this block suits panel-level distribution and motor control circuits inside an enclosure. The 10.00 mm pitch gives generous creepage between adjacent circuits, so you can route traces between the pins on the PCB without tight spacing rules. The M3 screw torque spec of 0.68 Nm (6 Lb-In) is the upper limit — overtightening can strip the brass threads.

Side Interlocking and Ganging

The interlocking (side) feature lets you snap multiple 282838-5 blocks together side-by-side to build a multi-pole assembly without a separate jumper bar. The interlock is mechanical — it aligns the housings and prevents them from separating under vibration. For a 10-position assembly, you'd use two 5-position blocks interlocked; there's no need to stock a separate 10-position variant.
