TE Connectivity AMP Connectors 282844-3

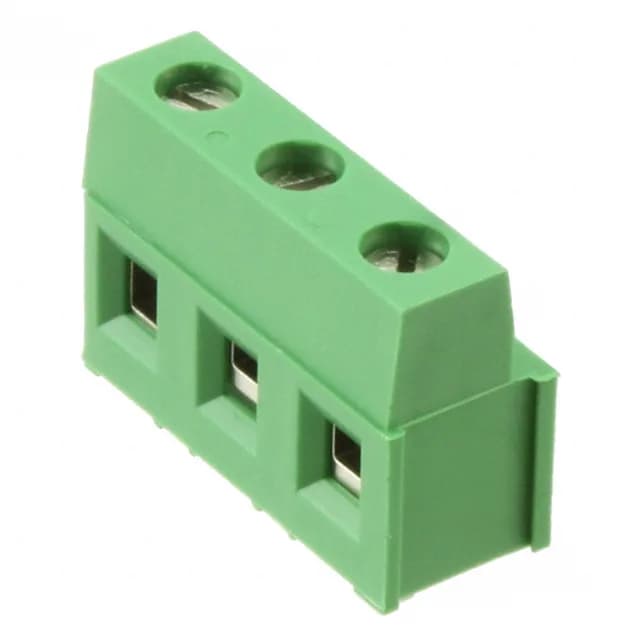

TE 282844-3 Buchanan Terminal Block, 3 Pos, 7.5mm, 17.5 A

MPN 282844-3
Active

TE Connectivity Buchanan 282844-3, 3-position PCB terminal block, 7.50mm pitch, 17.5 A, 300 V, screw rising cage clamp, through-hole, green, bulk.

$1.8600 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

282844-3 key specifications
ParameterValue
SeriesBuchanan
MountingThrough Hole
Voltage300 V
Current17.5 A
Wire gauge12-30 AWG
Wire terminationScrew - Rising Cage Clamp
ColorGreen
Housing materialPolyamide (PA66), Nylon 6/6
Clamp material - platingBrass - Nickel Plated
Screw material - platingBrass - Nickel Plated
Contact material - platingBrass - Tin Plated
Pitch0.295\" (7.50mm)

All specifications

282844-3 additional specifications
ParameterValue
PackageBulk
FeaturesInterlocking (Side)
Screw threadM3
Torque - screw0.79 Nm (7.0 Lb-In)
Number of levels1
Mating orientationHorizontal with Board
Positions per level3

Product details

3-Position PCB Block at 7.50 mm Pitch

The TE Connectivity Buchanan 282844-3 is a 3-position, single-level PCB terminal block designed for horizontal wire entry relative to the board. The 7.50 mm pitch spaces the positions wide enough for 300 V working voltage and 17.5 A per circuit, with the rising cage clamp accepting solid or stranded wire from 12 AWG down to 30 AWG. The green polyamide (PA66) housing carries the side interlocking feature so multiple blocks can be ganged on the same pitch without gaps.

Termination and Wire Clamping

Wire termination uses a screw-driven rising cage clamp — tightening the M3 screw to 0.79 Nm (7.0 Lb-In) lifts the clamp plate against the conductor, creating a gas-tight connection that resists thermal cycling better than a simple screw-and-washer. The clamp and screw are brass with nickel plating; the contact surface is brass with tin plating, matched to the wire copper for galvanic compatibility.

Board Layout and Ganging

The side interlocking feature lets you snap multiple 282844-3 blocks together on the same 7.50 mm pitch axis for a continuous multi-position strip — no gaps between blocks, no extra board space lost. Each block occupies the same footprint as the single-level 7.50 mm Buchanan family.
