TE Connectivity AMP Connectors 282844-4

TE Connectivity 282844-4 Buchanan Terminal Block, 4 Position

MPN 282844-4
Active

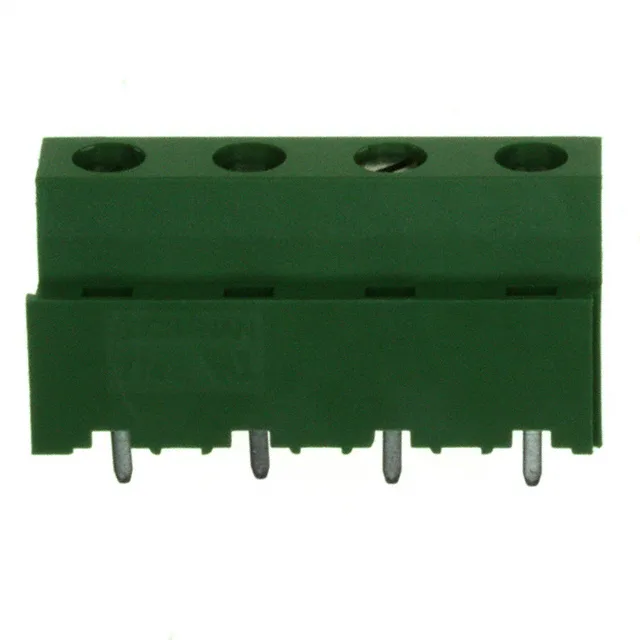

TE Connectivity Buchanan series, 282844-4, 4-position PCB terminal block, 7.50 mm pitch, 17.5 A, 300 V, through-hole, screw rising cage clamp, side entry, green housing.

$2.0600 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

282844-4 key specifications
ParameterValue
SeriesBuchanan
MountingThrough Hole
Voltage300 V
Current17.5 A
Wire gauge12-30 AWG
Wire terminationScrew - Rising Cage Clamp
ColorGreen
Housing materialPolyamide (PA66), Nylon 6/6
Clamp material - platingBrass - Nickel Plated
Screw material - platingBrass - Nickel Plated
Contact material - platingBrass - Tin Plated
Pitch0.295\" (7.50mm)

All specifications

282844-4 additional specifications
ParameterValue
PackageBulk
FeaturesInterlocking (Side)
Screw threadM3
Torque - screw0.79 Nm (7.0 Lb-In)
Number of levels1
Mating orientationHorizontal with Board
Positions per level4

Product details

The 282844-4: It uses a screw-driven rising cage clamp to terminate wires from 12-30 AWG against a tin-plated brass contact, with the wire entry oriented horizontally to the board. The 7.50 mm pitch leaves room between positions for the M3 screw and the clamp mechanism, which means the block can handle the 17.5 A per position without the adjacent terminals crowding the heat dissipation. The green polyamide (PA66) housing carries a 300 V rating, matching the typical panel-level distribution voltage inside an industrial control cabinet.

Wiring and Termination — What the Screw Torque Tells You

The rising cage clamp pulls the conductor up against a flat pressure plate when the M3 screw is tightened to 0.79 Nm (7.0 Lb-In). That torque spec is the key to a reliable termination — too little and the wire can pull out under vibration, too much and you strip the threads in the nylon housing. The brass screw and clamp are both nickel-plated, so the corrosion resistance is adequate for a dry indoor cabinet but not for a washdown environment.
