TE Connectivity AMP Connectors 282857-8

TE Connectivity Buchanan 282857-8

MPN 282857-8
Active

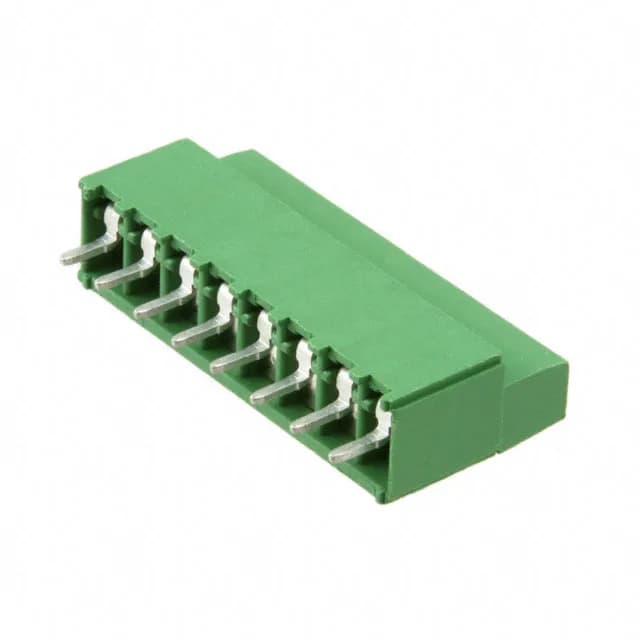

TE Connectivity Buchanan 282857-8, 8-position, 1-level PCB terminal block, 5.08mm pitch, side-entry, rising cage clamp, 24 A, 300 V, through-hole, green PA66 housing.

$4.8800 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

282857-8 key specifications
ParameterValue
SeriesBuchanan
MountingThrough Hole
Voltage300 V
Current24 A
Wire gauge12-30 AWG
Wire terminationScrew - Rising Cage Clamp
ColorGreen
Housing materialPolyamide (PA66), Nylon 6/6
Clamp material - platingBrass - Nickel Plated
Screw material - platingBrass - Nickel Plated
Contact material - platingBrass - Tin Plated
Pitch0.200\" (5.08mm)

All specifications

282857-8 additional specifications
ParameterValue
PackageBulk
FeaturesInterlocking (Side)
Screw threadM3
Torque - screw0.79 Nm (7.0 Lb-In)
Number of levels1
Mating orientationHorizontal with Board
Positions per level8

Product details

8-Position Side-Entry Terminal Block on 5.08mm Pitch

The 282857-8: It terminates wire via a rising cage clamp actuated by an M3 screw — the clamp pulls the wire up against the current bar, giving a gas-tight connection on solid or stranded 12-30 AWG without needing a ferrule. The green polyamide (PA66) housing carries the Buchanan series interlocking feature on the side, so multiple blocks can be ganged into a continuous strip without extra brackets.

Rated for 24 A at 300 V — Industrial Panel Duty

Each position is rated 24 A at 300 V. That current rating is for the full wire range; at 24 A the screw torque should be set to 0.79 Nm (7.0 Lb-In) as called out on the block. The 300 V working voltage suits control transformers, motor starters, and general panel wiring inside equipment rated for that insulation class.
