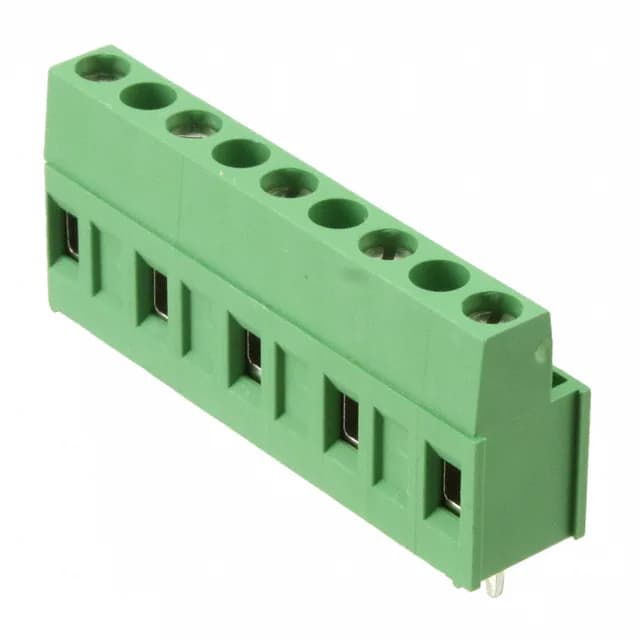

TE Connectivity AMP Connectors Buchanan 282858-5, 5-position, 10.00 mm pitch, side-entry wire-to-board terminal block, screw rising cage clamp, 24 A, 600 V, green PA66 housing, through-hole, bulk.
| Parameter | Value |
|---|---|
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage | 600 V |
| Current | 24 A |
| Wire gauge | 12-30 AWG |
| Wire termination | Screw - Rising Cage Clamp |
| Color | Green |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Clamp material - plating | Brass - Nickel Plated |
| Screw material - plating | Brass - Nickel Plated |
| Contact material - plating | Brass - Tin Plated |
| Pitch | 0.394\" (10.00mm) |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Interlocking (Side) |
| Screw thread | M3 |
| Torque - screw | 0.79 Nm (7.0 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 5 |
The 282858-5 is a 5-position, 10.00 mm pitch terminal block from the TE Buchanan series, rated 24 A at 600 V. That current rating at this pitch is what sets it apart — most 10 mm pitch headers top out around 15-20 A. The rising cage clamp termination and M3 screw with 0.79 Nm torque handle solid or stranded 12-30 AWG wire without a ferrule.
The rising cage clamp accepts 12-30 AWG wire and requires a screw torque of 0.79 Nm (7.0 Lb-In). The M3 screw and clamp are both brass with nickel plating.
