TE Connectivity AMP Connectors 282858-8

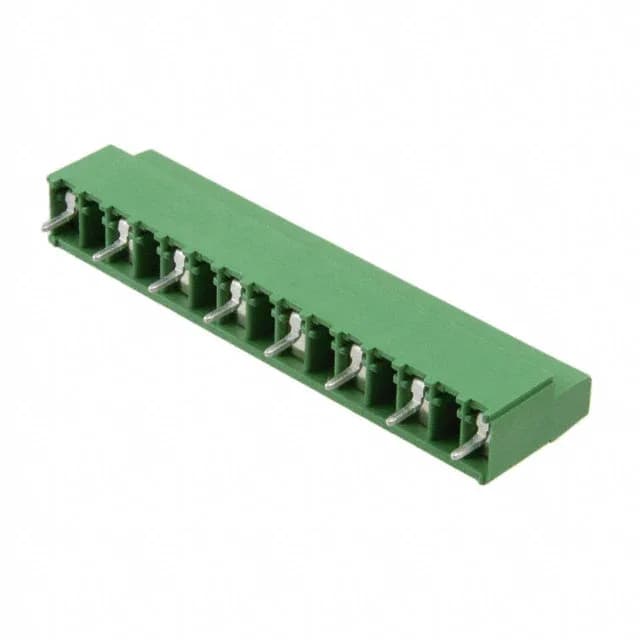

282858-8 TE Connectivity Buchanan 8-Position 10mm PCB

MPN 282858-8
Active

TE Connectivity AMP Connectors Buchanan series, 282858-8, 8-position, 0.394" (10.00mm) pitch, side-entry screw rising cage clamp terminal block, 24 A, 600 V, green PA66 housing, through-hole mounting, bulk package.

$7.5000 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

282858-8 key specifications
ParameterValue
SeriesBuchanan
MountingThrough Hole
Voltage600 V
Current24 A
Wire gauge12-30 AWG
Wire terminationScrew - Rising Cage Clamp
ColorGreen
Housing materialPolyamide (PA66), Nylon 6/6
Clamp material - platingBrass - Nickel Plated
Screw material - platingBrass - Nickel Plated
Contact material - platingBrass - Tin Plated
Pitch0.394\" (10.00mm)

All specifications

282858-8 additional specifications
ParameterValue
PackageBulk
FeaturesInterlocking (Side)
Screw threadM3
Torque - screw0.79 Nm (7.0 Lb-In)
Number of levels1
Mating orientationHorizontal with Board
Positions per level8

Product details

8-position, 10 mm pitch side-entry block

The 282858-8 is an 8-position, single-level terminal block from TE's Buchanan series, on a 0.394" (10.00mm) pitch — the wide pitch keeps routing clear for higher-voltage or higher-current runs on the board. Rated 24 A at 600 V, it handles motor control, power supply, and industrial I/O wiring where a compact multi-pole block is needed but the load still demands a 10 mm spacing between terminals.

Screw rising cage clamp termination

Wire termination is via a screw-driven rising cage clamp: turning the M3 screw to 0.79 Nm (7.0 Lb-In) lifts the clamp plate, trapping the conductor against the bus bar — no wire ferrule required for stranded wire, though 12-30 AWG is accepted. The clamp and screw are brass with nickel plating; the contact surface is brass with tin plating — a combination that resists corrosion in factory-floor atmospheres without the cost of full gold. Side interlocking lets you snap multiple 282858-8 blocks together into a multi-position assembly — useful when a design needs 16 or 24 positions but the PCB layout benefits from individual blocks ganged on the rail.
