TE Connectivity AMP Connectors 282888-3

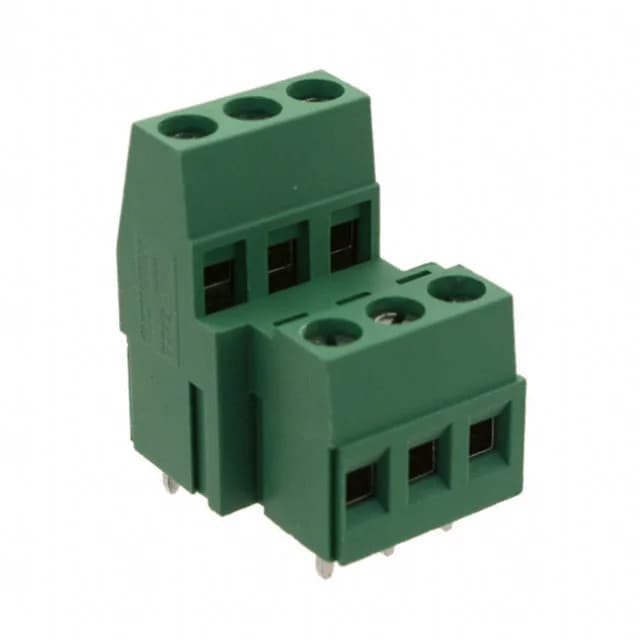

TE Connectivity 282888-3 Buchanan Terminal Block, 3 Pos, 5mm

MPN 282888-3
Active

TE Connectivity Buchanan 282888-3, 3 positions per level, 2 levels, 5.00 mm pitch, 17.5 A, 300 V, green, through hole, screw rising cage clamp, M3.

$5.3700 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

282888-3 key specifications
ParameterValue
SeriesBuchanan
MountingThrough Hole
Voltage300 V
Current17.5 A
Wire gauge12-30 AWG
Wire terminationScrew - Rising Cage Clamp
Operating temperature-40°C ~ 105°C
ColorGreen
Housing materialPolyamide (PA66), Nylon 6/6
Clamp material - platingBrass - Nickel Plated
Screw material - platingBrass - Nickel Plated
Contact material - platingBrass - Tin Plated

All specifications

282888-3 additional specifications
ParameterValue
Pitch0.197\" (5.00mm)
PackageBulk
FeaturesInterlocking (Side)
Screw threadM3
Torque - screw0.79 Nm (7.0 Lb-In)
Number of levels2
Mating orientationHorizontal with Board
Positions per level3

Product details

What This PCB Terminal Block Does

The TE Connectivity 282888-3 is a two-level, 3-position-per-level PCB-mount terminal block from the Buchanan series. It terminates wires via a screw-driven rising cage clamp — the M3 screw tightens to 0.79 Nm (7.0 Lb-In), pulling the clamp up against the conductor. The green polyamide (PA66) housing is the standard Buchanan colour; side interlocking lets you gang multiple blocks into a single multi-position assembly without extra hardware.

Board Layout and Wire Termination

The 5.00 mm pitch sets the PCB drill pattern — each level has its own solder pin, so a 3-position, 2-level block needs six through-hole pads on 5.00 mm centres. The mating orientation is horizontal with the board (side entry), meaning wires enter parallel to the PCB surface. The rising cage clamp works with both solid and stranded wire; no ferrule is required, though ferrules help with fine-stranded 30 AWG. The brass contact material is tin-plated, adequate for the 17.5 A per-level rating in indoor, non-corrosive environments.

Current and Voltage Capacity

Rated 17.5 A per level at 300 V.

Side Interlocking and Ganging

The interlocking (side) feature means the 282888-3 has dovetail slots on both sides. You can slide multiple blocks together to build a longer terminal strip — no separate jumper bar or end bracket needed for mechanical alignment. The interlock keeps the blocks aligned on the PCB during wave solder and in service.
