TE Connectivity AMP Connectors 2834055-4

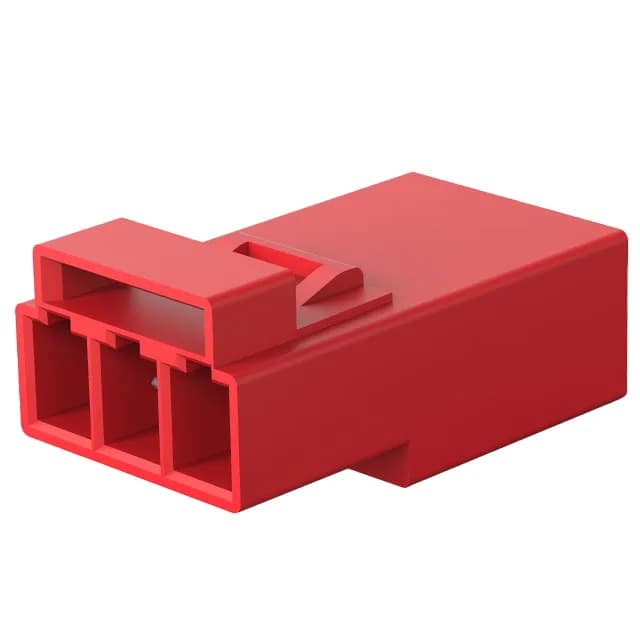

TE LIGHT-N-LOK 2834055-4, 3-Position Receptacle, 600V

MPN 2834055-4
Active

TE Connectivity LIGHT-N-LOK, Receptacle, 3 Positions, 16-22 AWG, Poke-In, Free Hanging, 600V, 3A/8A, Tin, Red, -40°C to 105°C.

$0.7000 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2834055-4 specifications
ParameterValue
SeriesLIGHT-N-LOK
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Holder
Voltage rating600V
Current rating3A, 8A
Wire gauge16-22 AWG
Operating temperature-40°C ~ 105°C
Housing colorRed
Contact materialCopper Alloy
Housing materialThermoplastic
StyleCable/Wire to Cable/Wire
PackageBulk
TerminationPoke-In
Mating cycles10
Contact finishTin
Positions3

Product details

3-Position Poke-In Splice for 16-22 AWG

The TE Connectivity LIGHT-N-LOK 2834055-4 is a 3-position receptacle designed for Cable/Wire to Cable/Wire inline splicing. It uses a poke-in termination — strip the wire, push it into the housing, and the internal contact grabs it. No crimp tool, no loose terminals. The 16-22 AWG range covers common signal and low-power wiring in lighting, appliance, and control panel harnesses. Rated 3A per circuit at the full temperature range, with an 8A peak when derated at lower ambient. The 600V voltage rating is generous for a 3-position inline connector — it's sized for mains-voltage isolation, not just low-voltage signal. The tin contact finish and 10 mating cycles confirm this is a semi-permanent splice, not a frequent-disconnect interface.
