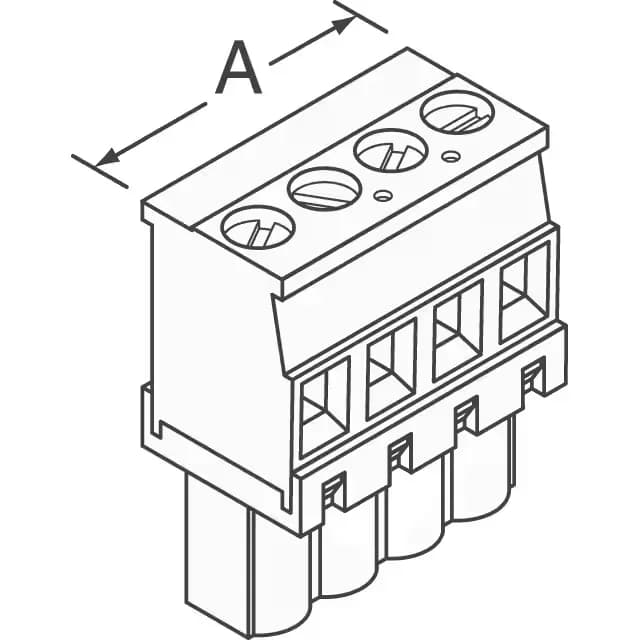

4-Position 5.00 mm Pitch Plug for Wire-to-Board Power
It carries a 15 A current rating at 300 V UL — a mid-power level suited for industrial control panels, lighting, and HVAC equipment where a compact wire-to-board interface is needed. The plug features retention latches on the non-wire side, which lock into the mating header to resist vibration-induced disconnection.
Wire Entry and Routing Flexibility
The plug wire entry is 270°, meaning the cable exits at a right angle relative to the mating axis. This allows the wire to run parallel to the board surface, saving space in shallow enclosures or where the cable must route along the panel wall. The insulation height of 0.984" (25.00 mm) provides clearance for the wire bend radius after termination, preventing strain on the cage clamp connection.
Contact and Material Construction
The contact material provides good spring properties for consistent clamp force. The housing is polyamide (PA66), a nylon 6/6 that offers good mechanical strength and chemical resistance for industrial environments.
Lifecycle and Compliance Status
It is ROHS3 compliant, meeting the current RoHS directive for restricted substances. The base product number is 284040, and the part is packaged in bulk.
