6-Position 5.00mm Pitch Plug – Wire-Side Termination Block

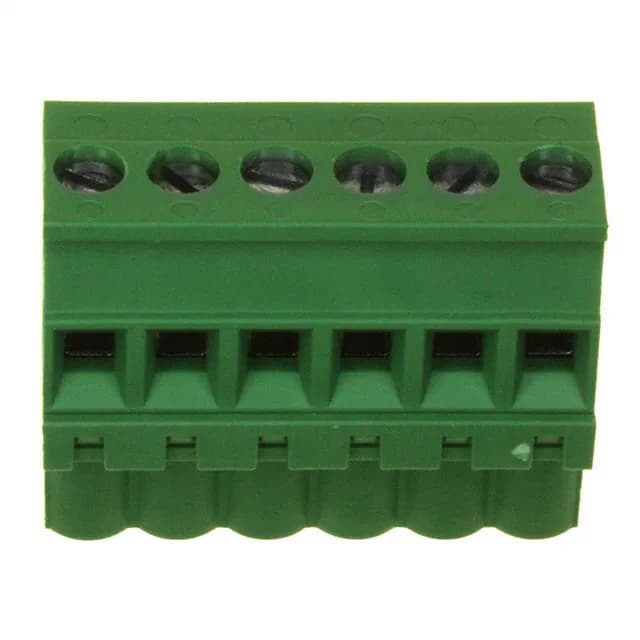

The 284040-6: This is a TE Connectivity Buchanan series plug, 6 positions at 0.197" (5.00mm) pitch, rated 15 A and 300 V – a standard power distribution block for control cabinets and junction boxes.
15 A / 300 V – Power Handling and Wire Range
The 12-30 AWG wire range covers both power feeds and signal wiring. The rising cage clamp termination uses an M3 screw with a torque spec of 0.79 Nm (7.0 Lb-In) – over-torquing can strip the PA66 threads, so a torque driver is recommended. Wire strip length is 6-7.5mm; the clamp grips the stripped conductor without a ferrule, though ferruled wire is acceptable for stranded conductors in high-vibration environments.
