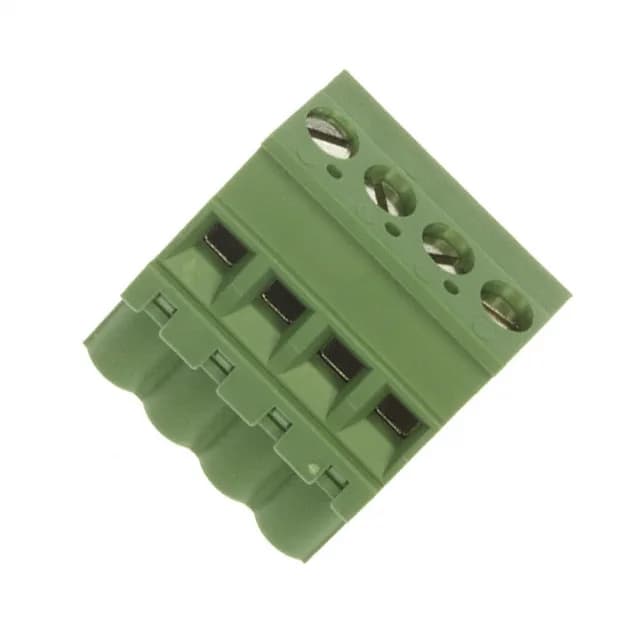

TE Connectivity AMP Connectors Buchanan series, 284041-4, Plug, Female Sockets, 4 positions, 0.200" (5.08mm) pitch, 15 A, 300 V, screw rising cage clamp, 270° wire entry, UL94 V-0, -40°C ~ 110°C
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Buchanan |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Plug wire entry | 270° |
| Wire strip length | 6-7.5mm |
| Wire gauge or range - AWG | 12-30 AWG |
| Wire gauge or range - mm2 | 0.05-3mm² |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.984\" (25.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side) |
| Screw size | M3 |
| Torque - screw | 0.79 Nm (7.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 4 |
| Positions per level | 4 |
| Contact mating finish | Tin |
The 284041-4 is a 4-position plug from TE's Buchanan series, designed for field wiring in industrial control panels and terminal block applications. It uses a screw rising cage clamp termination to secure 12-30 AWG wire, rated for 15 A at 300 V.
The 0.79 Nm torque limit protects the PA66 housing threads; the 6-7.5 mm strip length ensures full cage clamp engagement.
The recommended screw torque is 0.79 Nm (7.0 Lb-In). Use a calibrated driver to avoid damaging the PA66 housing.
The plug wire entry is 270°, meaning the wire enters at a right angle relative to the mating face — useful for tight cabinet layouts.
Yes, it is ROHS3 compliant per TE's lifecycle status.
It accepts 12-30 AWG (0.05-3 mm²) solid or stranded wire with a strip length of 6-7.5 mm.
