TE Connectivity AMP Connectors 284046-4

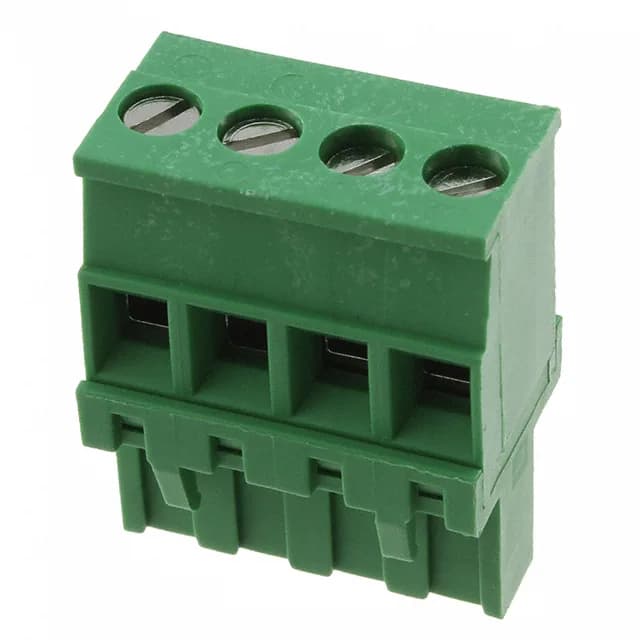

284046-4 TE Connectivity 4-Position 5.00 mm Terminal Block

MPN 284046-4
Active

TE Connectivity AMP Connectors Buchanan 284046-4, Type Plug Female Sockets, 4 Positions, 0.197" (5.00mm) Pitch, 15 A, 300 V, Screw Rising Cage Clamp, Free Hanging, 90° Wire Entry, Bulk

$4.1400 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

284046-4 key specifications
ParameterValue
TypePlug, Female Sockets
SeriesBuchanan
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL15 A
Plug wire entry90°
Wire strip length6-7.5mm
Wire gauge or range - AWG12-30 AWG
Wire gauge or range - mm20.05-3mm²
Operating temperature-40°C ~ 110°C
ColorGreen
Contact materialPhosphor Bronze

All specifications

284046-4 additional specifications
ParameterValue
Housing materialPolyamide (PA66), Nylon 6/6
Insulation height0.984\" (25.00mm)
Material flammability ratingUL94 V-0
Pitch0.197\" (5.00mm)
PackageBulk
FeaturesRetention Latches (Wire Side)
Screw sizeM3
Torque - screw0.79 Nm (7.0 Lb-In)
Number of levels1
Termination styleScrew - Rising Cage Clamp
Positions4
Positions per level4
Contact mating finishTin

Product details

4-Position 5.00 mm Plug for Panel Wiring

The 284046-4 is a 4-position, single-level plug from TE's Buchanan series, pitched at 0.197" (5.00 mm) — a common spacing for industrial control terminal blocks. It's a free-hanging (in-line) female socket plug with 90° wire entry, meaning the wires exit perpendicular to the mating axis, useful for routing along a panel or enclosure wall. The green housing is standard for ground/neutral identification in many European-style terminal block schemes.

Screw Rising Cage Clamp Termination

Termination is via a screw-driven rising cage clamp — the screw (M3) pushes a clamp plate up against the wire, gripping it against the contact. The specified torque is 0.79 Nm (7.0 Lb-In); overtightening can strip the cage or damage the conductor. Accepts wire from 12-30 AWG (0.05-3 mm²) with a strip length of 6-7.5 mm. The retention latches on the wire side hold the plug in the mating header, preventing accidental disconnection under vibration.
