Two-position 5.08 mm plug for panel wiring

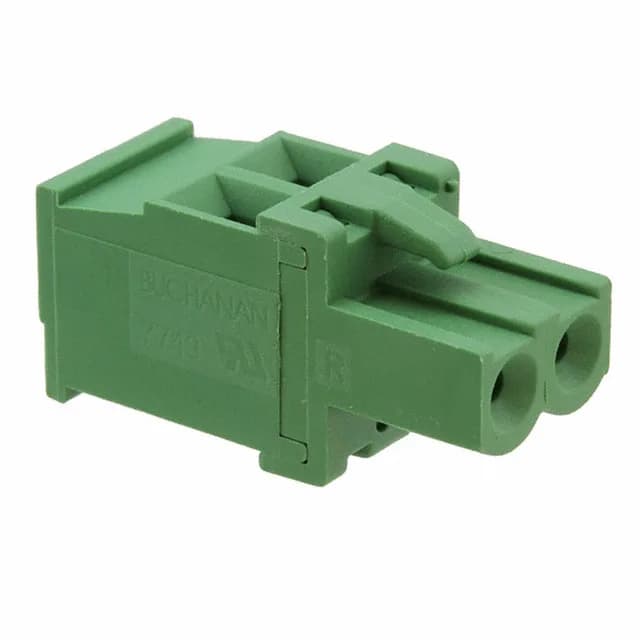

The 284047-2: This is a 2-position, 5.08 mm pitch plug from the TE Buchanan series, rated 15 A at 300 V — a common fit for power distribution or motor control terminal blocks where you need a disconnectable wire-side interface. Termination is a rising cage clamp with M3 screw, torqued to 0.79 Nm (7.0 Lb-In), accepting 12-30 AWG (0.05-3 mm²) wire with a strip length of 6-7.5 mm.
Screw clamp termination and wire range
The rising cage clamp pulls the wire against a phosphor bronze contact with tin plating — good for moderate mating cycles and cost-sensitive builds. The housing is polyamide (PA66) rated UL94 V-0, and the operating range spans -40°C to 110°C, covering most industrial cabinet environments. Retention latches on the wire side lock the plug into the header, preventing accidental disconnection under vibration.
RoHS3 compliant. No official second-source cross-reference; peer MPNs 1-2213934-1, 1-2305909-1, and 1-2213935-1 are functionally similar but verify pitch and position count before substituting.
