5.08 mm pitch plug for panel wiring

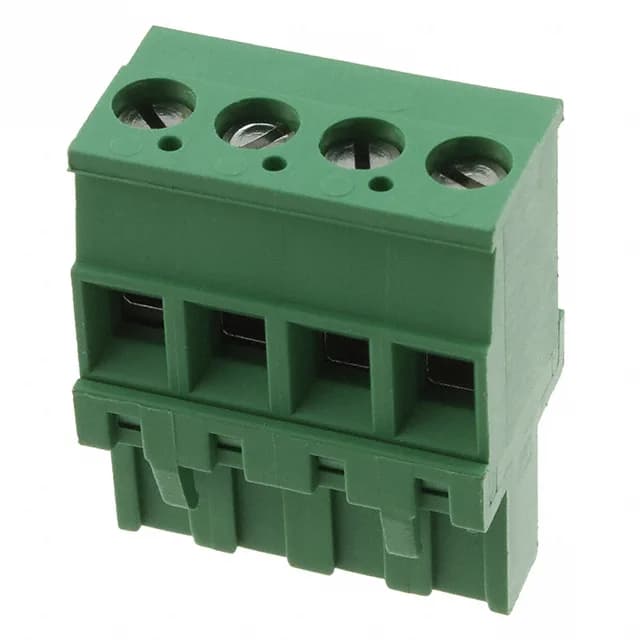

The 284047-4 is a 4-position plug from the TE Connectivity Buchanan series, using a 0.200" (5.08 mm) pitch that matches standard terminal block headers. The plug accepts 12-30 AWG wire (0.05-3 mm²) with a screw rising cage clamp termination, torqued to 0.79 Nm (7.0 Lb-In). The 90° wire entry routes conductors parallel to the board, saving space in shallow enclosures.
15 A current rating and 300 V isolation
Rated 15 A per circuit at 300 V UL, the 284047-4 handles motor starters, power supplies, and relay panel wiring without derating at ambient up to 110°C. Retention latches on the wire side lock the plug into the mating header, resisting vibration.
