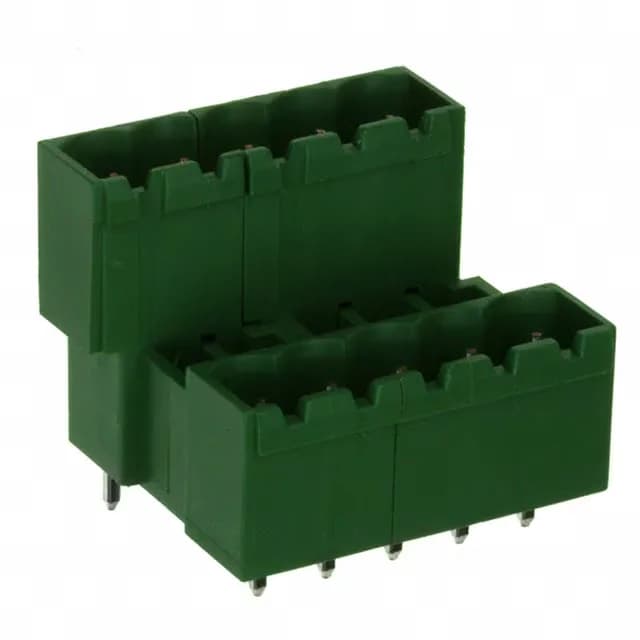

284065-5 TE Buchanan Header, 10 Pos, 5.08 mm, Vertical, Tin

MPN284065-5
Active

TE Connectivity AMP Connectors Buchanan series, 284065-5, Header, Male Pins, Shrouded (4 Side), 10 positions, 2 levels, 5.08 mm pitch, vertical orientation, through-hole solder, tin contact finish, 12 A, 300 V, UL94 V-0, green housing, bulk.

$8.8700Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 284065-5 datasheet (PDF)
RoHSRoHS Compliant
SeriesBuchanan
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

284065-5 key specifications
ParameterValue
TypeHeader, Male Pins, Shrouded (4 Side)
SeriesBuchanan
MountingThrough Hole
Voltage - UL300 V
Current - UL12 A
Operating temperature-40°C~110°C
ColorGreen
Contact materialCopper Alloy
Housing materialPolyamide (PA66), Nylon 6/6
Insulation height0.869\" (22.08mm)
Material flammability ratingUL94 V-0
Pitch0.200\" (5.08mm)

All specifications

284065-5 additional specifications
ParameterValue
PackageBulk
FeaturesInterlocking (Side)
Number of levels2
Termination styleSolder
Header orientationVertical
Contact tail length0.138\" (3.50mm)
Positions10
Positions per level5
Contact mating finishTin

Product details

5.08 mm Pitch, 10-Position Vertical Header

The 284065-5 is a 10-position, 2-level vertical header from the TE Buchanan series, designed to mate with a 5.08 mm pitch terminal block plug. Rated 12 A at 300 V per UL, with a tin contact mating finish. The 0.138" (3.50 mm) solder tail length suits standard through-hole PCB thicknesses.

The vertical orientation means the plug inserts straight down, keeping the wire entry parallel to the PCB. The through-hole solder termination is wave-solder compatible. The interlocking side feature allows ganging multiple headers without gaps — useful when the terminal count exceeds 10 positions and a single wider header is not available.
