TE Connectivity AMP Connectors 284392-8

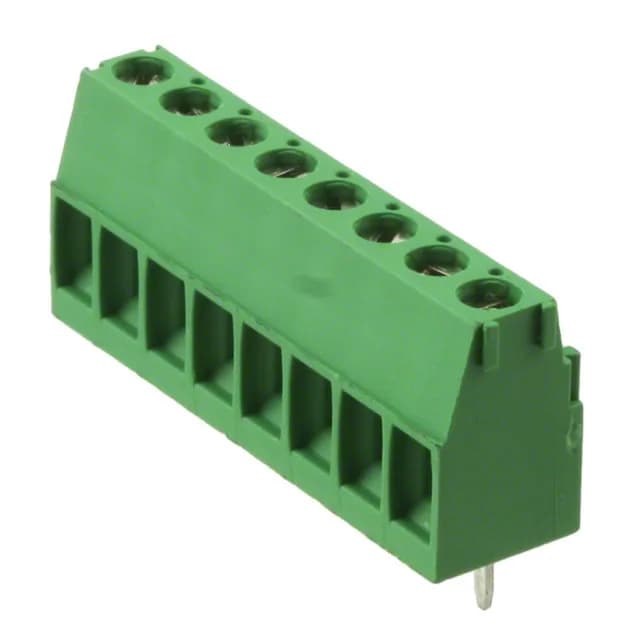

TE Connectivity 284392-8 Buchanan Terminal Block, 8 Position

MPN 284392-8
Active

TE Connectivity Buchanan 284392-8, 8-position PCB terminal block, 3.81mm pitch, 12 A, 300 V, side-entry wire, screw rising cage clamp, green PA66 housing, through-hole.

$5.9100 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

284392-8 key specifications
ParameterValue
SeriesBuchanan
MountingThrough Hole
Voltage300 V
Current12 A
Wire gauge14-30 AWG
Wire terminationScrew - Rising Cage Clamp
ColorGreen
Housing materialPolyamide (PA66), Nylon 6/6
Clamp material - platingBrass - Nickel Plated
Screw material - platingBrass - Nickel Plated
Contact material - platingBrass - Tin Plated
Pitch0.150\" (3.81mm)

All specifications

284392-8 additional specifications
ParameterValue
PackageBulk
FeaturesInterlocking (Side)
Screw threadM3
Torque - screw0.25 Nm (2.2 Lb-In)
Number of levels1
Mating orientationHorizontal with Board
Positions per level8

Product details

8-Position PCB Terminal Block, 3.81 mm Pitch, Side Entry

It uses a screw-rising cage clamp termination — the M3 screw (0.25 Nm torque spec) drives a brass clamp that pulls the wire against the current bar, giving a gas-tight connection on solid or stranded wire from 14 to 30 AWG. The green PA66 housing (UL94 V-0 rated by material class) and the side-entry wire orientation — horizontal with the board — suit it for control cabinets, HVAC panels, and industrial power distribution where the wiring enters parallel to the PCB. The interlocking side feature lets multiple 284392-8 blocks snap together side-by-side to build a continuous terminal strip without extra hardware.

12 A per Circuit — Sized for Power, Not Signal

The contact material is brass with tin plating, which is standard for stationary screw-clamp terminations where mating-cycle count is low (field wiring, not repeated disconnect). The rising cage clamp grips the conductor across its full cross-section, so the 12 A rating holds up to the full wire temperature rating as long as the ambient stays within the PA66 operating range.
