TE Connectivity AMP Connectors 284414-3

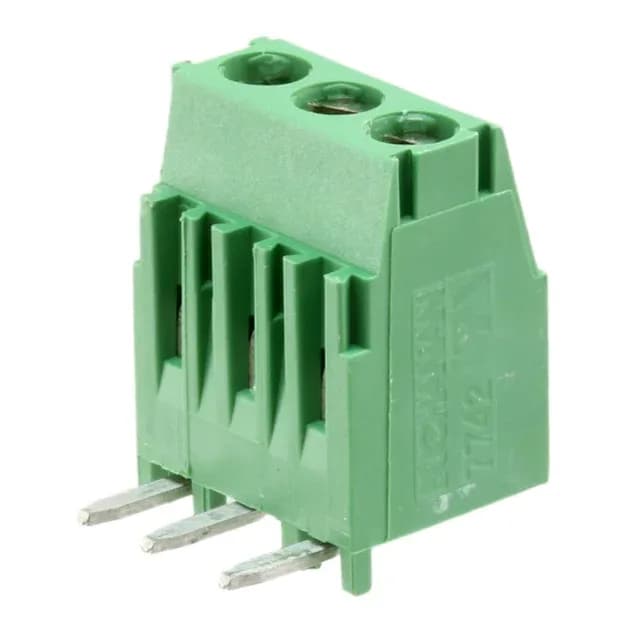

TE Connectivity 284414-3 Buchanan Terminal Block, 3 Position

MPN 284414-3
Active

TE Connectivity Buchanan 284414-3, 3-position PCB terminal block, 3.50mm pitch, 12 A, 300 V, screw rising cage clamp, through-hole, green housing, bulk.

$1.8200 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

284414-3 key specifications
ParameterValue
SeriesBuchanan
MountingThrough Hole
Voltage300 V
Current12 A
Wire gauge12-30 AWG
Wire terminationScrew - Rising Cage Clamp
ColorGreen
Housing materialPolyamide (PA66), Nylon 6/6
Clamp material - platingBrass - Nickel Plated
Screw material - platingBrass - Nickel Plated
Contact material - platingBrass - Tin Plated
Pitch0.138\" (3.50mm)

All specifications

284414-3 additional specifications
ParameterValue
PackageBulk
FeaturesInterlocking (Side)
Screw threadM3
Torque - screw0.25 Nm (2.2 Lb-In)
Number of levels1
Mating orientationVertical with Board
Positions per level3

Product details

It uses a screw-actuated rising cage clamp to terminate wires from 12 AWG down to 30 AWG — solid or stranded — directly to the board. The interlocking side feature lets you snap multiple blocks together side-by-side to build a multi-pole distribution point without a separate jumper bar. The M3 screw is torqued to 0.25 Nm (2.2 Lb-In) — enough to hold a 12 AWG conductor without crushing it.

Through-hole solder pins hold the block to the PCB. The wire entry is vertical with the board — top-entry, so the wires come in perpendicular to the PCB surface. The rising cage clamp lifts when the screw is turned, opening the wire entry; tightening the screw pulls the clamp down onto the conductor. Brass contacts with tin plating handle the 12 A rating, and the nickel-plated brass screw and clamp resist corrosion in industrial atmospheres.
