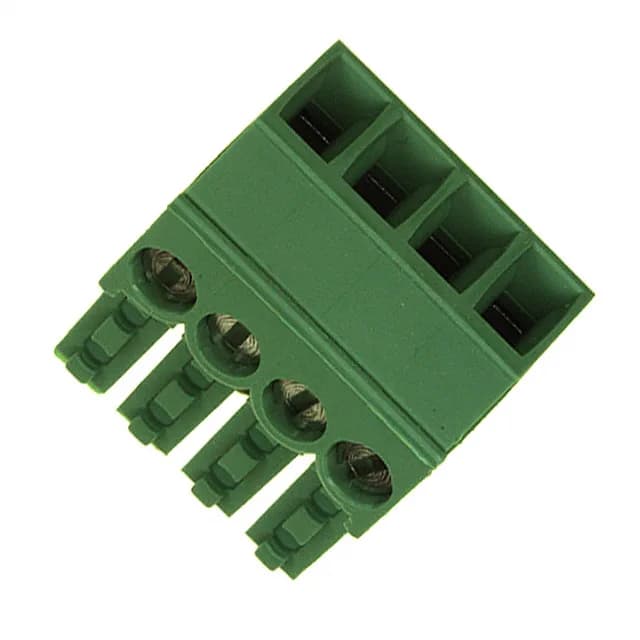

TE Connectivity AMP Connectors Buchanan 284506-4, Plug Female Sockets, 4 positions, 1 level, 0.138" (3.50mm) pitch, 11 A, 300 V, screw rising cage clamp, side stacking, UL94 V-0, green, -40°C to 110°C.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Buchanan |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 11 A |
| Plug wire entry | 180° |
| Wire strip length | 5-6mm |
| Wire gauge or range - AWG | 14-30 AWG |
| Wire gauge or range - mm2 | 0.05-2mm² |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.437\" (11.10mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Features | Side Stacking |
| Screw size | M2 |
| Torque - screw | 0.31 Nm (2.7 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 4 |
| Positions per level | 4 |
| Contact mating finish | Tin |
TE Connectivity Buchanan 284506-4 is a 4-position plug with female sockets on a 3.50mm pitch, rated 11 A at 300 V. Side stacking allows ganging multiple plugs without extra hardware.
The M2 screw terminals require a torque of 0.31 Nm (2.7 Lb-In) to secure wires from 14-30 AWG (0.05-2 mm²). Strip length is 5-6 mm. The rising cage clamp provides a gas-tight connection that resists vibration loosening.
284506-4 is rated 11 A per circuit at 300 V (UL).
The M2 screw terminals require 0.31 Nm (2.7 Lb-In) of torque.
Yes, the 3.50mm pitch mates with standard 3.5mm pin headers.
Yes, the side stacking feature allows multiple plugs to be assembled side-by-side without additional brackets.
Wire entry is 180° (straight-in), making it a vertical plug relative to the header axis.
It belongs to the TE Connectivity Buchanan series of terminal block plugs.
Yes, it is ROHS3 compliant.
