TE Connectivity AMP Connectors 284507-4 — Header Plugs & Sockets

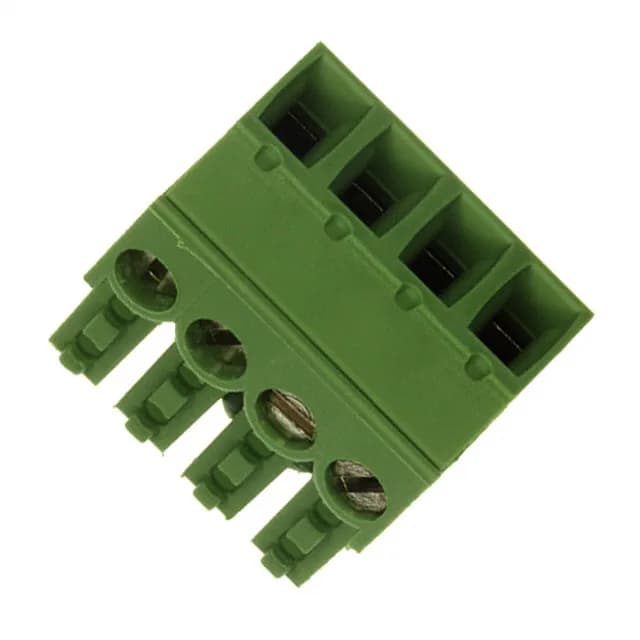

284507-4 TE Connectivity Buchanan 4-Pos 3.81mm Plug

MPN284507-4
Active

TE Connectivity AMP Connectors Buchanan series, 284507-4, Plug Female Sockets, 4 positions, 0.150" (3.81mm) pitch, 11 A, 300 V, free-hanging (in-line), screw – rising cage clamp, green housing, UL94 V-0.

$2.6400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 284507-4 datasheet (PDF)
RoHSROHS3 Compliant
SeriesBuchanan
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

284507-4 key specifications
ParameterValue
TypePlug, Female Sockets
SeriesBuchanan
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL11 A
Plug wire entry180°
Wire strip length5-6mm
Wire gauge or range - AWG14-30 AWG
Wire gauge or range - mm20.05-2mm²
Operating temperature-40°C ~ 110°C
ColorGreen
Contact materialPhosphor Bronze

All specifications

284507-4 additional specifications
ParameterValue
Housing materialPolyamide (PA66), Nylon 6/6
Insulation height0.437\" (11.10mm)
Material flammability ratingUL94 V-0
Pitch0.150\" (3.81mm)
PackageBulk
FeaturesSide Stacking
Screw sizeM2
Torque - screw0.31 Nm (2.7 Lb-In)
Number of levels1
Termination styleScrew - Rising Cage Clamp
Positions4
Positions per level4
Contact mating finishTin

Product details

4-position plug for Buchanan terminal blocks

The 284507-4 is a 4-position plug from the TE Connectivity Buchanan series, designed as the female socket half for a wire-to-board terminal block system. It mates with the corresponding 4-position header (e.g., 284506-4) to create a field-wireable connection rated 11 A at 300 V. The 0.150" (3.81mm) pitch is a standard spacing for signal-level industrial control wiring, allowing direct replacement in many PLC and I/O module applications.

Screw cage clamp termination – field-reliable and reworkable

Termination is via a screw-driven rising cage clamp, accepting 14-30 AWG solid or stranded wire with a strip length of 5-6 mm. The specified torque of 0.31 Nm (2.7 Lb-In) ensures a gas-tight connection without damaging the conductor.

Frequently asked questions

Is 284507-4 compatible with the 284506-4 header?

Yes, the 284507-4 plug mates with the 284506-4 header. Both are 4-position, 3.81mm pitch Buchanan series components – the plug is the female socket half that terminates the wire, and the header mounts to the PCB.
