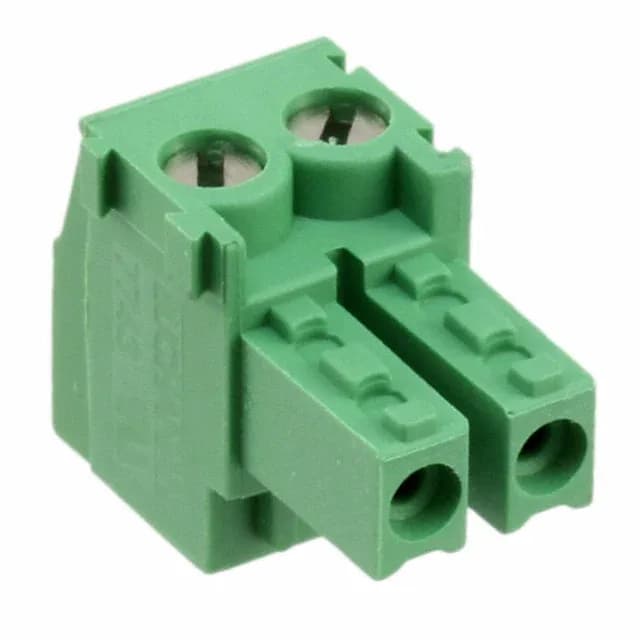

TE Connectivity AMP Connectors Buchanan series, 284509-2, plug female sockets, 2 positions, 0.150" (3.81mm) pitch, 12 A, 150 V, screw rising cage clamp, green, UL94 V-0, free hanging, 180° wire entry.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Buchanan |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 150 V |
| Current - UL | 12 A |
| Plug wire entry | 180° |
| Wire strip length | 5-6mm |
| Wire gauge or range - AWG | 14-30 AWG |
| Wire gauge or range - mm2 | 0.05-2mm² |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.437\" (11.10mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.150\" (3.81mm) |
| Package | Bulk |
| Features | Interlocking (Side) |
| Screw size | M2 |
| Torque - screw | 0.25 Nm (2.2 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 2 |
| Positions per level | 2 |
| Contact mating finish | Tin |
The 284509-2 is a 2-position plug from TE Connectivity's Buchanan series, rated 12 A at 150 V with a 3.81 mm pitch. It uses a screw rising cage clamp termination — the screw pushes a clamp down onto the stripped wire, giving a gas-tight connection without a separate ferrule. The side interlock feature lets you snap multiple plugs together side-by-side to build wider multi-position blocks from 2-position modules.
The 284509-2 is rated 12 A per position at 150 V (UL). The 3.81 mm pitch and tin-plated phosphor bronze contacts support this current within the UL temperature rise limits.
