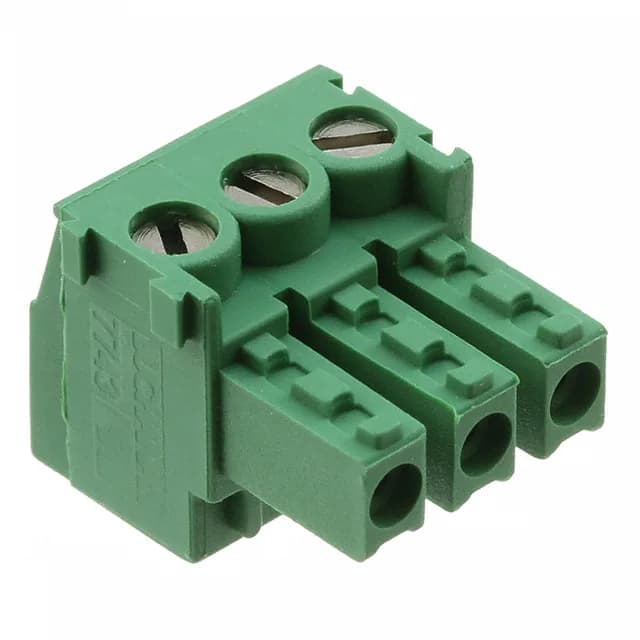

284509-3 TE Connectivity Buchanan 3-Position 3.81mm Plug

MPN284509-3
Active

TE Connectivity AMP Connectors Buchanan 284509-3, 3-position plug, female sockets, 0.150" (3.81mm) pitch, screw rising cage clamp, 12 A UL, 150 V UL, green housing, side interlocking, bulk.

$2.4000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBuchanan
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

284509-3 key specifications
ParameterValue
TypePlug, Female Sockets
SeriesBuchanan
MountingFree Hanging (In-Line)
Voltage - UL150 V
Current - UL12 A
Plug wire entry180°
Wire strip length5-6mm
Wire gauge or range - AWG14-30 AWG
Wire gauge or range - mm20.05-2mm²
Operating temperature-40°C ~ 110°C
ColorGreen
Contact materialPhosphor Bronze

All specifications

284509-3 additional specifications
ParameterValue
Housing materialPolyamide (PA66), Nylon 6/6
Insulation height0.437\" (11.10mm)
Material flammability ratingUL94 V-0
Pitch0.150\" (3.81mm)
PackageBulk
FeaturesInterlocking (Side)
Screw sizeM2
Torque - screw0.25 Nm (2.2 Lb-In)
Number of levels1
Termination styleScrew - Rising Cage Clamp
Positions3
Positions per level3
Contact mating finishTin

Product details

3.81 mm pitch, 3 positions, side interlocking

The 284509-3: This 3-position plug from the Buchanan series uses a 0.150" (3.81mm) pitch — the board footprint matches standard 3.81mm terminal block headers. The side interlocking feature lets you gang multiple plugs together without extra brackets, building a wider multi-position assembly from single units.

Free-hanging plug with 180° wire entry

Mounting type is free hanging (in-line), with the wire entry straight into the plug at 180°. The insulation height of 0.437" (11.10mm) gives clearance above the PCB for the cage clamp mechanism.
