TE Connectivity AMP Connectors 284511-2

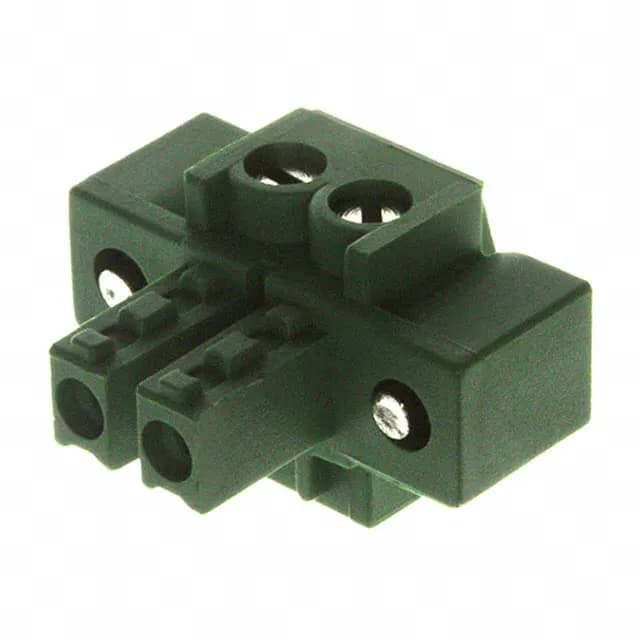

284511-2 TE Connectivity Buchanan Plug, 2 Pos, 3.81 mm, 11 A

MPN 284511-2
Active

TE Connectivity AMP Connectors Buchanan series, 284511-2, Plug, Female Sockets, 2 positions, 0.150" (3.81 mm) pitch, 11 A, 300 V, free hanging, screw rising cage clamp, green, UL94 V-0.

$4.4900 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

284511-2 key specifications
ParameterValue
TypePlug, Female Sockets
SeriesBuchanan
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL11 A
Plug wire entry180°
Wire strip length5-6mm
Wire gauge or range - AWG14-30 AWG
Wire gauge or range - mm20.05-2mm²
Operating temperature-40°C~110°C
ColorGreen
Contact materialPhosphor Bronze

All specifications

284511-2 additional specifications
ParameterValue
Housing materialPolyamide (PA66), Nylon 6/6
Insulation height0.437\" (11.10mm)
Material flammability ratingUL94 V-0
Pitch0.150\" (3.81mm)
PackageBulk
FeaturesMating Flange
Screw sizeM2
Torque - screw0.31 Nm (2.7 Lb-In)
Number of levels1
Termination styleScrew - Rising Cage Clamp
Positions2
Positions per level2
Contact mating finishTin

Product details

3.81 mm Pitch, 2-Position Plug for Field Wiring

The 284511-2 is a 2-position plug from TE's Buchanan series — a free-hanging female socket block with a 0.150" (3.81 mm) pitch. It terminates individual wires via a screw rising cage clamp, accepting 14-30 AWG (0.05-2 mm²) with a 5-6 mm strip length. The 11 A / 300 V rating (per UL) suits it for control cabinets, sensors, and low-power distribution where each circuit needs a field-serviceable screw termination. The mating flange and M2 screw secure the plug to its header, preventing pull-out in moderate vibration.

Screw Rising Cage Clamp — Torque and Wire Prep

Phosphor bronze contact material with tin mating finish provides adequate conductivity for the 11 A rating in a controlled environment. For repeated mating cycles (e.g., during panel commissioning), tin contacts are rated for moderate duty — not for frequent field disconnect/reconnect where gold plating would be specified.

Active Lifecycle and Sourcing

This plug mates with a Buchanan 3.81 mm pitch header (base product number 284511). The mating flange on the plug aligns with the header's locking tabs. Within the series, the 2-position variant is the smallest circuit count — larger versions go up to 24 positions at the same pitch. For a 2-circuit termination point, this plug is the compact, field-wireable choice.

MPN
284511-2
