TE Connectivity AMP Connectors 284511-6 — Header Plugs & Sockets

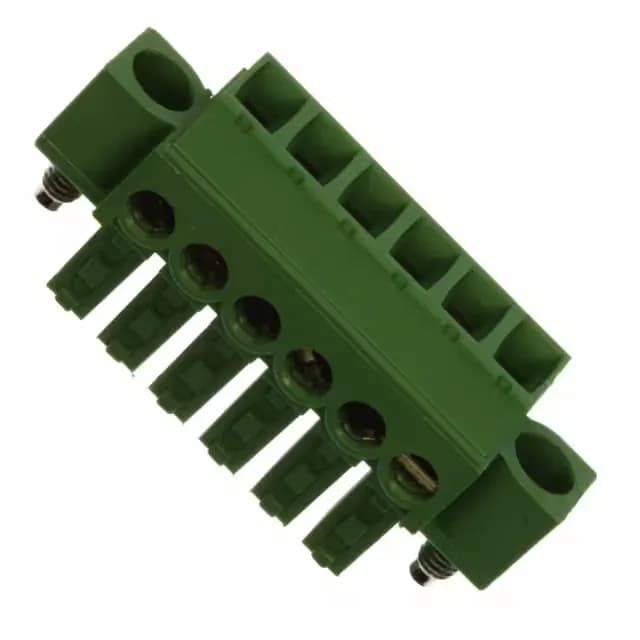

284511-6 TE Connectivity Buchanan Plug, 6 Pos, 3.81mm, 11A

MPN284511-6
Active

TE Connectivity AMP Connectors Buchanan series, 284511-6, Plug, Female Sockets, 6 positions, 0.150" (3.81mm) pitch, 11 A, 300 V, screw - rising cage clamp, free hanging, green, UL94 V-0.

$10.5000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 284511-6 datasheet (PDF)
RoHSROHS3 Compliant
SeriesBuchanan
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

284511-6 key specifications
ParameterValue
TypePlug, Female Sockets
SeriesBuchanan
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL11 A
Plug wire entry180°
Wire strip length5-6mm
Wire gauge or range - AWG14-30 AWG
Wire gauge or range - mm20.05-2mm²
Operating temperature-40°C~110°C
ColorGreen
Contact materialPhosphor Bronze

All specifications

284511-6 additional specifications
ParameterValue
Housing materialPolyamide (PA66), Nylon 6/6
Insulation height0.437\" (11.10mm)
Material flammability ratingUL94 V-0
Pitch0.150\" (3.81mm)
PackageBulk
FeaturesMating Flange
Screw sizeM2
Torque - screw0.31 Nm (2.7 Lb-In)
Number of levels1
Termination styleScrew - Rising Cage Clamp
Positions6
Positions per level6
Contact mating finishTin

Product details

Terminal Block Plug for Panel Wiring

The 284511-6 is a 6-position plug from the TE Buchanan series, designed for free-hanging (in-line) termination with a screw-rising cage clamp. The 0.150" (3.81mm) pitch sets the per-contact current ceiling at 11 A, with a voltage rating of 300 V. The plug mates with a matching header (typically a 284510-series or equivalent 3.81mm pitch receptacle) to form a wire-to-board connection. The mating flange feature provides a positive lock against vibration-induced disconnection.

For applications requiring frequent disconnect, a gold-plated variant from the same series would extend cycle life.

It is ROHS3 compliant.

Frequently asked questions

Where can I buy 284511-6 and how do I get a price?

No stock-holding claim is made — availability is verified per request.

What is the mating connector for 284511-6?

The 284511-6 mates with a 3.81mm pitch header, typically from the TE Buchanan 284510 series or equivalent. The mating flange feature requires a corresponding flange on the header for positive locking.

What wire gauge is compatible with 284511-6?

The rising cage clamp accepts 14-30 AWG (0.05-2 mm²) solid or stranded wire. Strip length is 5-6 mm; the screw torque should be set to 0.31 Nm (2.7 Lb-In).
