3.50 mm Pitch, 5-Position Right-Angle Header

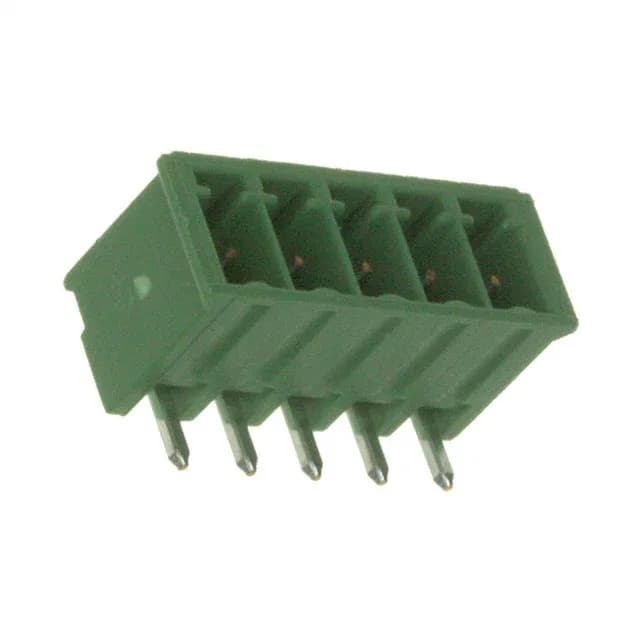

The 284512-5 is a 5-position, single-level shrouded header from the TE Buchanan series, with a 0.138" (3.50 mm) pitch.
Tin Contacts and 11 A Current Rating
In a fixed terminal block application where the header is mated once during installation and rarely disconnected, tin is the cost-effective choice.
Shrouded Housing and UL94 V-0 Flammability
The green polyamide (PA66) housing is shrouded on four sides, protecting the male pins from accidental shorting during handling and guiding the mating plug into alignment. The 0.287" (7.30 mm) insulation height provides adequate creepage distance for the 300 V rating.
It is ROHS3 compliant.
