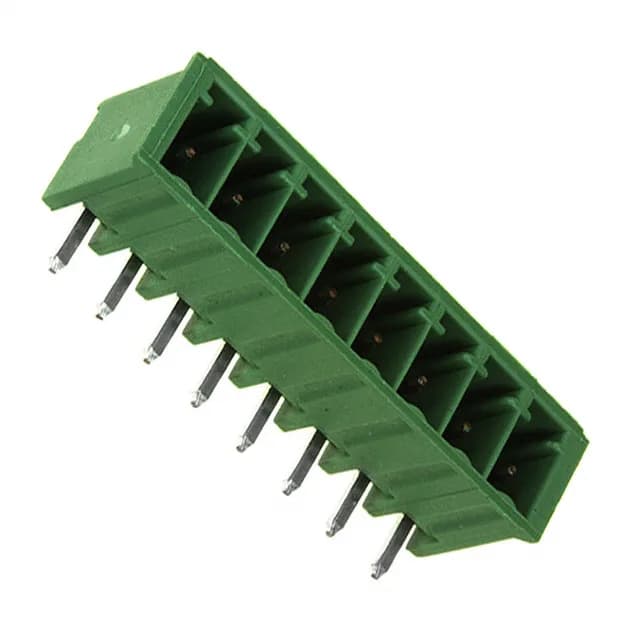

TE Connectivity Buchanan 284512-8, 8-position, 3.50 mm pitch, right-angle shrouded header, tin-plated phosphor bronze contacts, 11 A / 300 V, through-hole solder termination, green PA66 housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 11 A |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.287\" (7.30mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.134\" (3.40mm) |
| Positions | 8 |
| Positions per level | 8 |
| Contact mating finish | Tin |
The 284512-8: This is an 8-position, single-level shrouded header from TE's Buchanan series — mates with the matching 3.50 mm pitch plug or terminal block. Rated 11 A per circuit at 300 V (UL), with tin-plated phosphor bronze contacts.
8 positions on a single level, 3.50 mm pitch, right-angle orientation with through-hole solder tails. The header is shrouded on four sides for keyed mating with the Buchanan plug.
Yes, ROHS3 compliant per TE's lifecycle record.
