8-circuit right-angle header for terminal block applications

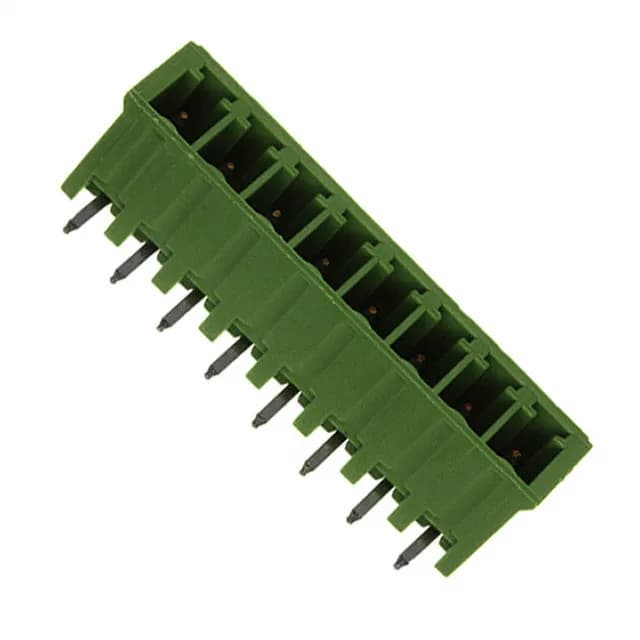

The 284513-8 is a Buchanan series header, 8 positions in a single level, with a 0.150" (3.81mm) pitch — the standard spacing for compact terminal block interfaces in industrial control panels. It is a shrouded (4 side) male pin header, meaning the plastic shroud surrounds the pins on all four sides, guiding the mating plug into alignment and protecting the contacts from accidental shorting during handling.
Right-angle orientation and solder termination
Termination is through-hole solder; the contact tail length of 0.134" (3.40mm) suits standard 1.6mm PCBs with enough protrusion for a reliable fillet.
