TE Connectivity AMP Connectors 284514-6

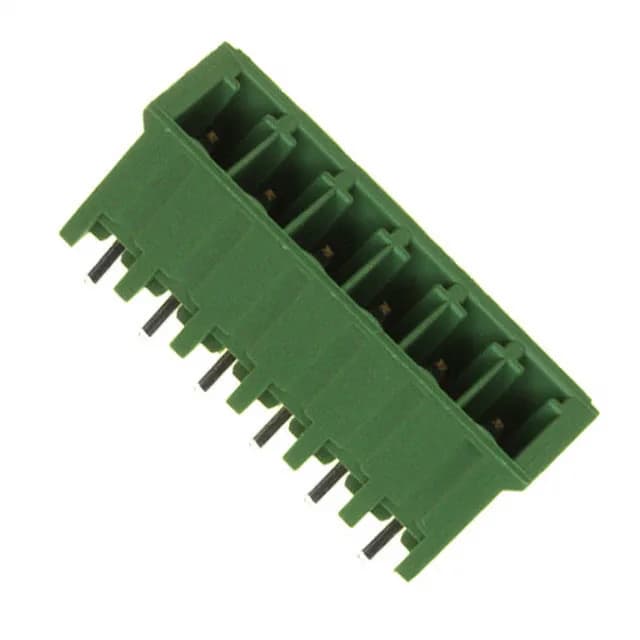

284514-6 TE Connectivity Buchanan Header, 6 Pos, 3.5mm Pitch

MPN 284514-6
Active

TE Connectivity AMP Connectors Buchanan series, 284514-6, Header, Male Pins, Shrouded (4 Side), 6 positions, 0.138" (3.50mm) pitch, through hole, vertical, tin contacts, UL94 V-0, green, bulk.

$3.0300 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

284514-6 key specifications
ParameterValue
TypeHeader, Male Pins, Shrouded (4 Side)
SeriesBuchanan
MountingThrough Hole
Voltage - UL300 V
Current - UL11 A
Operating temperature-40°C ~ 110°C
ColorGreen
Contact materialPhosphor Bronze
Housing materialPolyamide (PA66), Nylon 6/6
Insulation height0.362\" (9.20mm)
Material flammability ratingUL94 V-0
Pitch0.138\" (3.50mm)

All specifications

284514-6 additional specifications
ParameterValue
PackageBulk
Number of levels1
Termination styleSolder
Header orientationVertical
Positions6
Positions per level6
Contact mating finishTin

Product details

Buchanan 3.5mm Header for Wire-to-Board

The 284514-6 is a 6-position, single-level header from TE's Buchanan series, pitched at 0.138" (3.50mm). This is the mating half for Buchanan 3.5mm plug connectors used in terminal block systems.

This header mates with Buchanan 3.5mm plug connectors (e.g., 284515 series) that accept 16-24 AWG wire via screw clamp. The shrouded 4-side design protects pins during handling and prevents mis-mating. Solder termination to PCB — through-hole for mechanical strength.
