What this 7-position vertical header fits

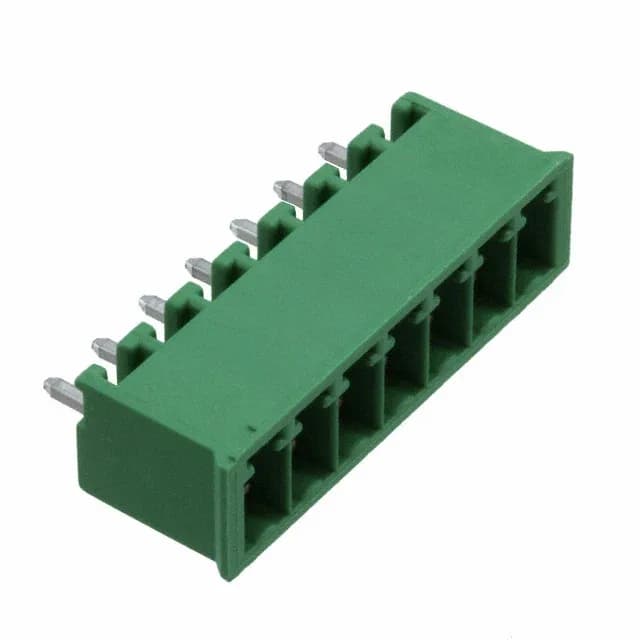

The 284514-7 is a 7-position, single-level, shrouded header from the Buchanan series. The 3.50mm pitch and vertical orientation suit it for wire-to-board terminal block applications where the mating plug inserts straight down onto the board. Rated 11 A at 300 V per UL, with a -40°C to 110°C operating range and a UL94 V-0 polyamide housing, it handles typical industrial control and signal distribution loads without derating concerns at room ambient.
The tin contact finish is rated for standard mating cycles in clean environments — gold plating would be preferred for high-cycle or corrosive service, but the tin keeps cost down for fixed installations.
