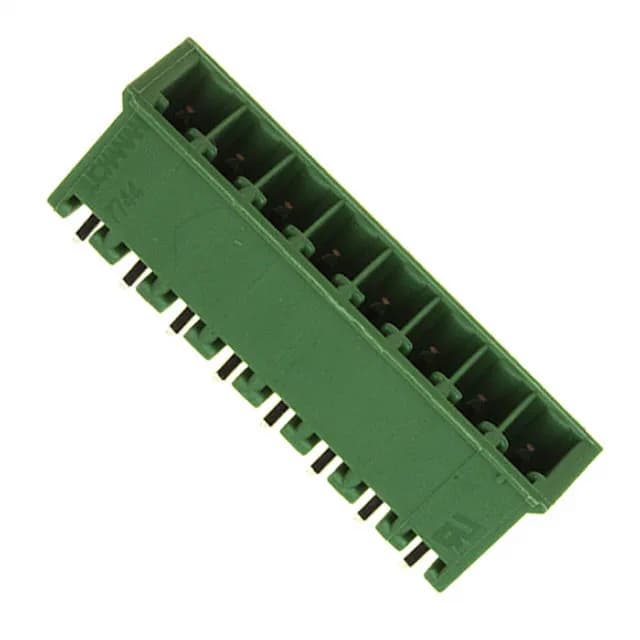

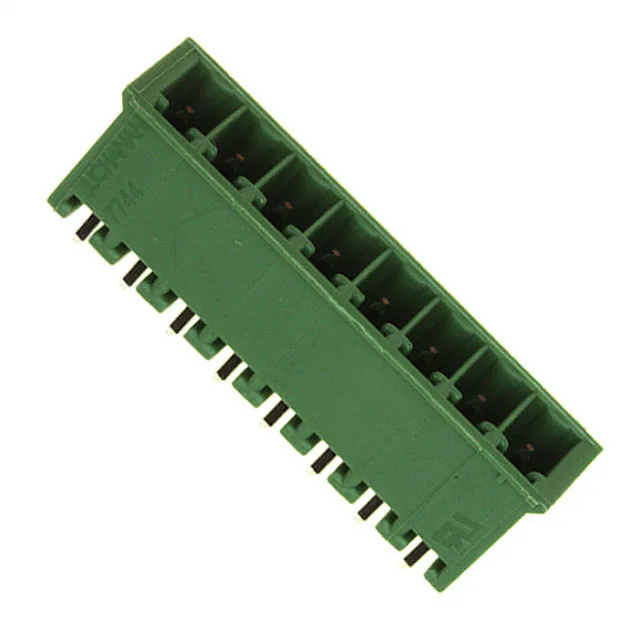

TE Connectivity AMP Connectors Buchanan series, 284514-8, 8-position, 0.138" (3.50mm) pitch, vertical shrouded header, through-hole solder termination, tin-plated contacts, UL94 V-0 green PA66 housing.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 11 A |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.362\" (9.20mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Positions | 8 |
| Positions per level | 8 |
| Contact mating finish | Tin |
The 284514-8: This is a TE Connectivity Buchanan series 8-position, single-level, vertical shrouded header with 0.138" (3.50 mm) pitch — the pitch sets the board footprint and the per-contact current ceiling. Vertical orientation keeps the wire entry perpendicular to the board, which matters for z-height clearance inside the cabinet.
Sibling order codes 1-2213934-1, 1-2305909-1, and 1-2213935-1 are also active 8-position vertical shrouded headers in the same Buchanan series, all with tin-plated contacts rated 11 A. Confirm the BOM position count and mating half before substituting.
