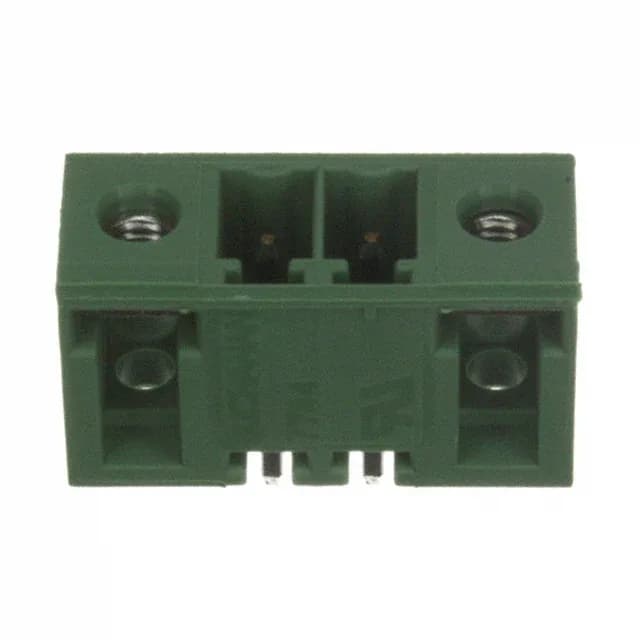

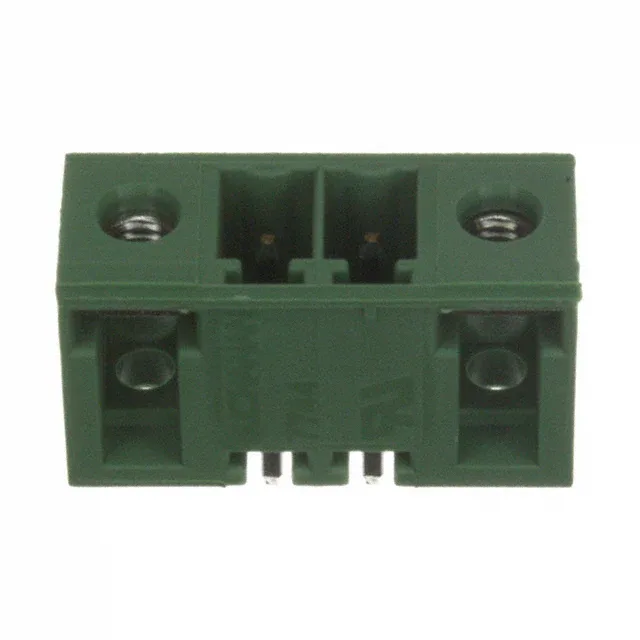

TE Connectivity AMP Connectors Buchanan series, 284516-2, Header, Male Pins, Shrouded (4 Side), 2 positions, 3.50 mm pitch, vertical through-hole, 11 A / 300 V, tin-plated contacts, UL94 V-0 green PA66 housing.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 11 A |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.362\" (9.20mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Mating Flange |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.134\" (3.40mm) |
| Positions | 2 |
| Positions per level | 2 |
| Contact mating finish | Tin |
The 284516-2 is a 2-position vertical through-hole header from the TE Buchanan series.
Rated 11 A per contact at 300 V (UL), this header suits signal-level power distribution inside control panels, PLC I/O racks, and industrial terminal blocks.
The pitch is 0.138" (3.50 mm) and it has 2 positions in a single level. This mates with a 2-position Buchanan receptacle at the same pitch.
