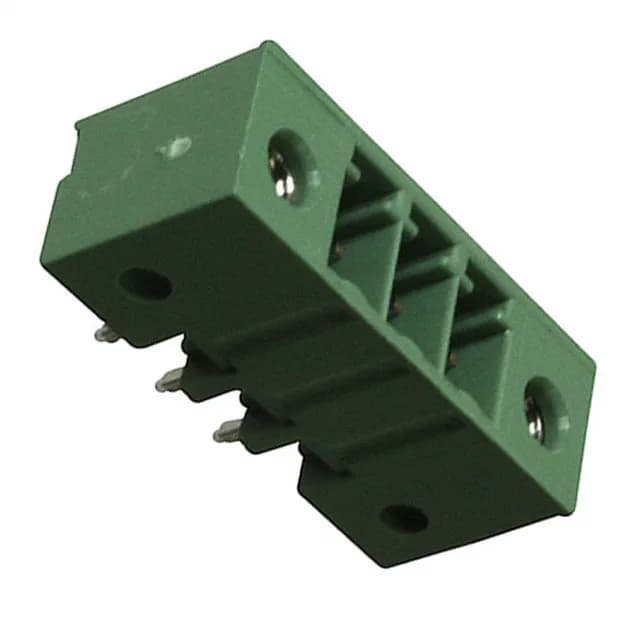

284516-3 TE Connectivity Buchanan Header, 3 Pos, 3.5mm

MPN284516-3
Active

TE Connectivity AMP Connectors Buchanan series 284516-3, Header, Male Pins, Shrouded (4 Side), 3 positions, 0.138" (3.50mm) pitch, vertical through-hole, tin mating finish, 11 A, 300 V, UL94 V-0, Green, Bulk.

$2.5600Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

284516-3 key specifications
ParameterValue
TypeHeader, Male Pins, Shrouded (4 Side)
SeriesBuchanan
MountingThrough Hole
Voltage - UL300 V
Current - UL11 A
Operating temperature-40°C ~ 110°C
ColorGreen
Contact materialPhosphor Bronze
Housing materialPolyamide (PA66), Nylon 6/6
Insulation height0.362\" (9.20mm)
Material flammability ratingUL94 V-0
Pitch0.138\" (3.50mm)

All specifications

284516-3 additional specifications
ParameterValue
PackageBulk
FeaturesMating Flange
Number of levels1
Termination styleSolder
Header orientationVertical
Contact tail length0.134\" (3.40mm)
Positions3
Positions per level3
Contact mating finishTin

Product details

3-position shrouded header for terminal block wiring

The 284516-3 is a 3-position, single-level, vertical through-hole header from the TE Buchanan series. It uses a 0.138" (3.50mm) pitch and a shrouded (4 side) design that protects the male pins during mating and handling.

Vertical through-hole termination with mating flange

The header mounts vertically through the PCB with solder tails 0.134" (3.40mm) long, and the insulation height above the board is 0.362" (9.20mm). The mating flange on the shroud provides a positive lock with the matching plug, reducing the risk of disconnection under vibration.

Frequently asked questions

What is the difference between 284516-3 and 284516-4?

The 284516-3 has 3 positions; the 284516-4 has 4 positions. Both are vertical, shrouded headers with 0.138" (3.50mm) pitch, tin finish, and 11 A / 300 V rating.
