TE Connectivity AMP Connectors 284517-2 — Header Plugs & Sockets

284517-2 TE Buchanan 2-Pos 3.81mm Header, 11A, 300V

MPN284517-2
Active

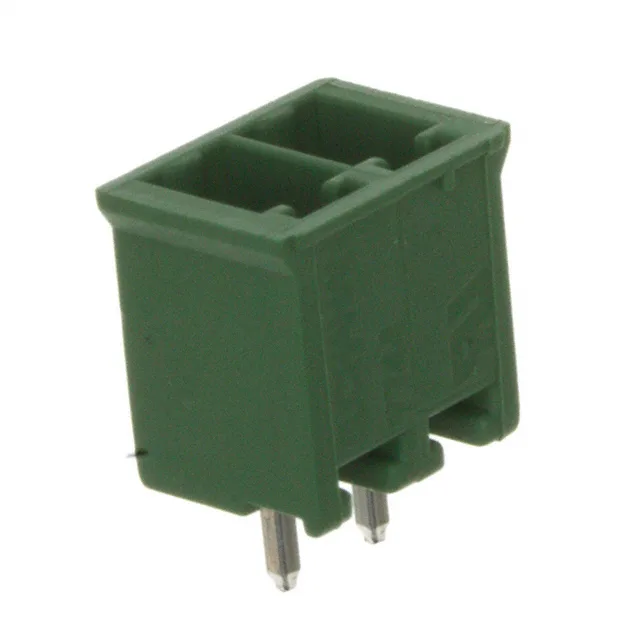

TE Connectivity Buchanan 284517-2, Header, Male Pins, Shrouded (4 Side), 2 positions, 0.150" (3.81mm) pitch, vertical through-hole, tin contact finish, rated 11 A at 300 V, UL94 V-0, green housing.

$0.6400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 284517-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

284517-2 key specifications
ParameterValue
TypeHeader, Male Pins, Shrouded (4 Side)
SeriesBuchanan
MountingThrough Hole
Voltage - UL300 V
Current - UL11 A
Operating temperature-40°C ~ 110°C
ColorGreen
Contact materialPhosphor Bronze
Housing materialPolyamide (PA66), Nylon 6/6
Insulation height0.362\" (9.20mm)
Material flammability ratingUL94 V-0
Pitch0.150\" (3.81mm)

All specifications

284517-2 additional specifications
ParameterValue
PackageBulk
Number of levels1
Termination styleSolder
Header orientationVertical
Positions2
Positions per level2
Contact mating finishTin

Product details

2-position vertical header for 3.81 mm terminal block interfaces

The 284517-2 is a 2-position, 0.150" (3.81mm) pitch shrouded header from TE's Buchanan series. Rated 11 A at 300 V per UL, with a vertical through-hole orientation and solder termination.

Current and voltage ceiling at the board interface

At 11 A per circuit and 300 V, this header supports a single power feed or a pair of signal lines. The 4-side shroud guides the mating plug and prevents pin damage during blind mating — a common requirement in panel wiring where the header is pre-soldered to the PCB and the plug is field-wired.

Frequently asked questions

What is the current rating of 284517-2?

The 284517-2 is rated 11 A per circuit at 300 V per UL. This is the maximum continuous current per position under the rated conditions.

Is 284517-2 compatible with TE Buchanan series?

Yes, the 284517-2 is part of the TE Buchanan series and mates with the corresponding 3.81 mm pitch Buchanan plug or receptacle. Confirm the mating half's pitch and position count match.

What connectors mate with 284517-2?

The 284517-2 mates with TE Buchanan 3.81 mm pitch plugs and receptacles designed for this series. The 4-side shroud accepts the plug's latch and guides the mating face.
