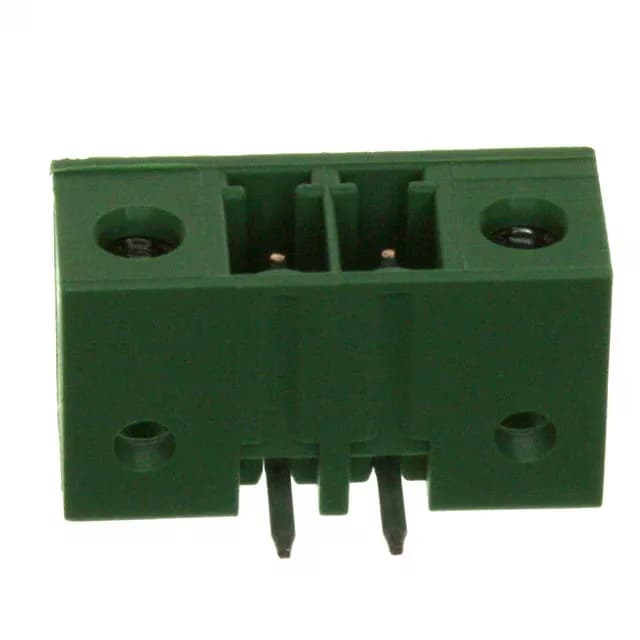

TE Connectivity AMP Connectors Buchanan series 284539-2, 2-position shrouded header, male pins, 0.138" (3.50mm) pitch, right-angle orientation, through-hole solder termination, tin-plated phosphor bronze contacts, UL94 V-0 PA66 housing, rated 11 A at 300 V, -40°C to 110°C.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 11 A |
| Operating temperature | -40°C~110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.285\" (7.25mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Mating Flange |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.134\" (3.40mm) |
| Positions | 2 |
| Positions per level | 2 |
| Contact mating finish | Tin |
Rated 11 A per contact at 300 V (UL), the 284539-2 covers signal-level and low-power distribution in industrial control panels, PLC I/O racks, and building automation terminal blocks. The -40°C to 110°C operating range suits unheated cabinets and outdoor-rated enclosures where the connector sees ambient temperature swings.
The 284539-2 is sourced through independent distribution against an RFQ. Submit an RFQ for your BOM quantity.
The 284539-2 is a shrouded header designed to mate with a Buchanan series terminal block plug or receptacle. The 3.50mm pitch and 2-position layout define the mating interface — confirm the mating half's position count and pitch match before ordering.
